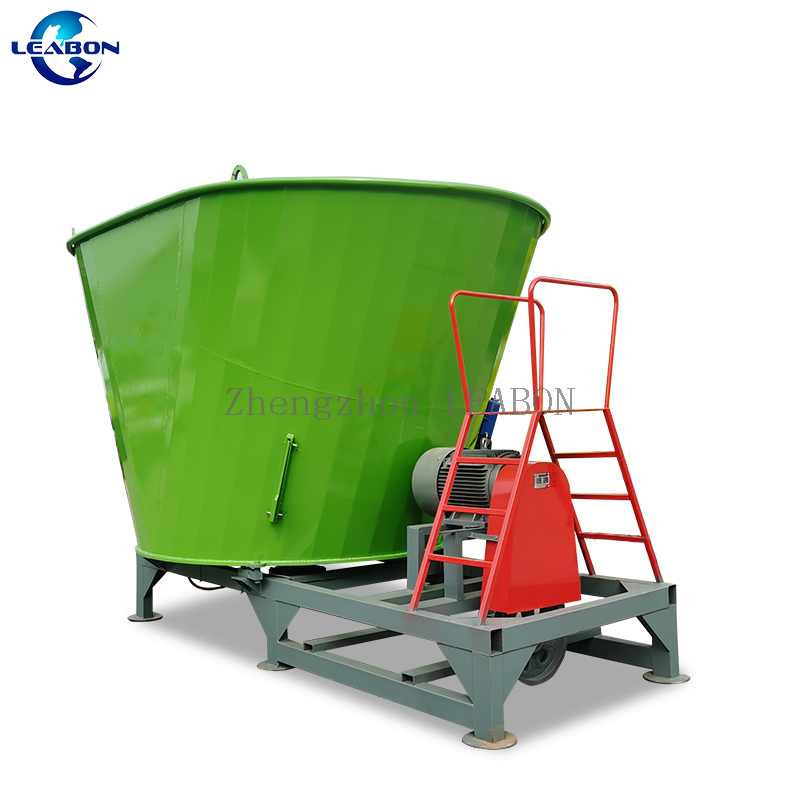

Introduction - Vertical Electric Motor Type Feed Mixer :
1)The machine is mainly composed of one or two augers. The spiral auger is divided into left and right rotations. During mixing and stirring, the material is simultaneously stirred and stirred at the middle position of the mixer from each direction of both ends of the box. Each spiral lead on the spiral body is equipped with a moving blade, and the fixed teeth on the center line of the feed mixer are used for cutting work. The various fibrous forages and straws passed through are cut and agitated so as to achieve complete mixing of the crushed and mixed Dietary feeding effect.
2)The bottom of the trough of the machine is made of high-quality alloy steel, suitable for working in harsh environments, safe and reliable work, simple operation, convenient and flexible. The unique cutting blade made of high wear-resistant materials greatly improves the service life of the product.
Catalog of Vertical Electric Motor Type Feed Mixer
| 9TMRL-5 | 9TMRL-9 | 9TMRL-12 | 9TMRL-16 | |
| Motor Power(kw) | 15 | 22 | 30 | 22+22 |
| Capacity(T/H) | 2-3t/h | 4-5t/h | 6-7t/h | 8-10t/h |
| QTY of blades(PCS) | 5 | 8 | 8 | 16 |
| QTY of twisted dragon(PCS) | 1 | 1 | 1 | 1 |
| Bottom plate thickness | 14mm | 16mm | 16mm | 18mm |
| Side plate thickness | 5mm | 8mm | 8mm | 8mm |
| QTY of twisted dragon(PCS) | Nanchang JiangLing | Nanchang JiangLing | Nanchang JiangLing | Nanchang JiangLing |
| Dimension(mm) | 3100*1900*2100mm | 3900*2300*2500m | 4600*2400*2600m | 5800*2500*2600m |
| Weight(kg) | 1900kg | 2800kg | 3600kg | 5000kg |
Introduction - Vertical Electric Motor Type Feed Mixer :
1)The machine is mainly composed of one or two augers. The spiral auger is divided into left and right rotations. During mixing and stirring, the material is simultaneously stirred and stirred at the middle position of the mixer from each direction of both ends of the box. Each spiral lead on the spiral body is equipped with a moving blade, and the fixed teeth on the center line of the feed mixer are used for cutting work. The various fibrous forages and straws passed through are cut and agitated so as to achieve complete mixing of the crushed and mixed Dietary feeding effect.
2)The bottom of the trough of the machine is made of high-quality alloy steel, suitable for working in harsh environments, safe and reliable work, simple operation, convenient and flexible. The unique cutting blade made of high wear-resistant materials greatly improves the service life of the product.
Catalog of Vertical Electric Motor Type Feed Mixer
| 9TMRL-5 | 9TMRL-9 | 9TMRL-12 | 9TMRL-16 | |
| Motor Power(kw) | 15 | 22 | 30 | 22+22 |
| Capacity(T/H) | 2-3t/h | 4-5t/h | 6-7t/h | 8-10t/h |
| QTY of blades(PCS) | 5 | 8 | 8 | 16 |
| QTY of twisted dragon(PCS) | 1 | 1 | 1 | 1 |
| Bottom plate thickness | 14mm | 16mm | 16mm | 18mm |
| Side plate thickness | 5mm | 8mm | 8mm | 8mm |
| QTY of twisted dragon(PCS) | Nanchang JiangLing | Nanchang JiangLing | Nanchang JiangLing | Nanchang JiangLing |
| Dimension(mm) | 3100*1900*2100mm | 3900*2300*2500m | 4600*2400*2600m | 5800*2500*2600m |
| Weight(kg) | 1900kg | 2800kg | 3600kg | 5000kg |
