Pet Food Making Line

  • LBD

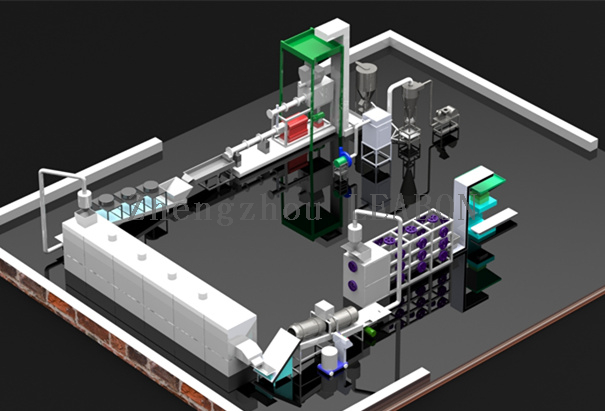

                                                 Pet Food Making Line

1. Pet Food Making Line Description:
Animal pet food processing line is suitable to make dry animal food pellet (dog, cat, bird, monkey, rabbit etc.)
1). All Animal food equipments are made of stainless steel. It meet food safety require.

2). The Pet food making whole line fully continuous and automatic.
3).  Leabon provide basic animal food receipt according to your require.
4). The final animal food shapes and sizes can be various by changing the extruder die.
5). Supply different size mould free for customer.
6). Packing machine could be supplied to work with the line (depend on your require).

2. Raw Materials for Pet Food Making Line:
For example, most of pet food pellet including animal protein and plant protein.
Plant protein adopts corn flour, rice flour, wheat flour, soybean flour, peanut cake powder…..
Animal protein adopt meat meal, shrimp meal, crab meal, sleeve-fish meal ,bone power, fresh meat paste, chicken paste and so on….you can add other ingredient according to the local fish live require.
Cat food you should add sea animal powder……...........
Dog food you should add bone powder, meat powder…..
You should change some raw material percent according to the animal requirements.
3. Final products from Pet Food Processing Line:
This animal food processing line can be used to produce pet food pellets, the pellets size can be from 1.0mm to 9.0mm by adjusting the extruder dies.
Meanwhile this line can  used to produce dog food, cat food by change some place. You can buy one whole line to make fish food and dog cat food together.
 4. Pet Food Making Line Capacity:
50-60kg/h  100-150kg/h, 220-260kg/h, 400-500kg/h, 800-1000kg/h 1200-15000kg/h
5. Dog food extruder plant /dog food processing line Flow chart:
Grain grinder---Mixing system---Twin screw Extrusion system----Drying system----Flavoring system--Packing system
6. China Standard Industrial Voltage for Pet Food Making Line:
Three phases: 380V/50Hz, Single phase: 220V/50Hz, We can make it according to customers’ Local voltage according to different countries (400v 415v  480v…….).
7. Dog Food Making Line Machines Materials:
All the Animal food machines are made by stainless steel, this whole line is with reasonable design and with high automation; the screws are made by alloy steel, with building block system structure and self-cleaning function.
 8. Pet Food Making Line Technical Parameters:

Model Installed power Real power Output Dimension
LBD65 70kw 40kw 100-150kg/h 22000x1200x2200mm
LBD70 90kw 50kw 200-240kg/h 25000x1500x2200mm
LBD85 120kw 100kw 400-500kg/h 30000x3500x4300mm
LBD90 135kw 100kw 800-1000kg/h 30000x3500x4300mm
LBD115 165kw 115kw 1000-2000kg/h 30000x3500x4300mm
1). At least 1 year from the date of completion of the commissioning.
2). Free consultation service before, during, and after sales;
3). Free project planning and design services;
4). Free debugging of equipment until everything is functional;
5). Free management of equipments' long distance shipping;
6). Free training of equipment maintenance and operating personally;
7). Free new production techniques and formulas;
8). Provide 1 year complete warrantee and life-time maintenance service;


Good quality-ontime delivery-good service
Leabon Equipment
1)We are the professional manufacturer, which has abundant experience of the machine, also we own research and development team.
2) The professional and timely 24 hours after-sale service.
3) The relative manual and video of the machine installation and instruction will be provided for you.

4) ODM&OEM Provided.
5) The engineer is available to  install and training for oversea projects.
