9FQ
LEABON

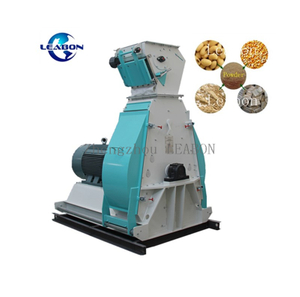

9FQ animal feed grinder
Features
◆ This kind of hammer mill is widely used in farm, wood and feed factory, etc. The raw materials can be kinds of grain, grass, even wood chips, wood branch, stalks, carton, waster paper etc. The final crushed material can be 3-8mm, which is suitable to make animal feed or biomass pellets.
◆ The machine could be driven by the diesel engine and electric motor. If you have the specific requirements about the power, we will do that as you required.
◆ Spare parts are hammers and screen. You can get the different size of crushed material by changing the screen.
◆ Also, machine voltage accepts customized. Generally voltage is 380v/50hz/3phase.
Specification
| MODEL | POWER (KW) | CAPACITY (kg/h） | DIMENSION(mm) | Weight (kg) |
| 9FQ 360-20 | 5.5 | 300-350 | 900*500*800 | 260 |
| 9FQ 400-28 | 7.5 | 400-500 | 1100*550*850 | 350 |
| 9FQ 500-28 | 11 | 600-800 | 1250*650*1000 | 450 |
| 9FQ 500-40 | 22 | 900-1000 | 1400*780*1250 | 750 |
| 9FQ 500-50 | 30/37 | 1500-2000 | 1600*850*1350 | 900 |
| 9FQ 500-60 | 37/45 | 2000-3000 | 1750*900*1550 | 1300 |
