SSHJ
LEABON

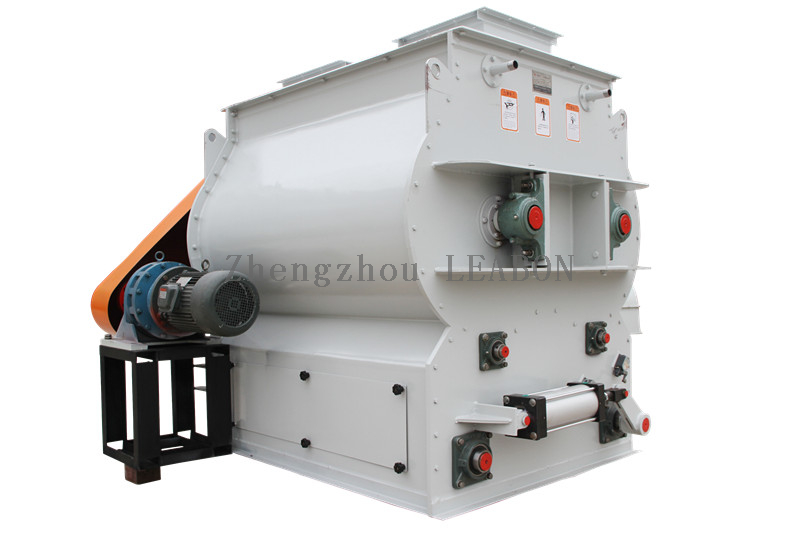

SSHJ Series High Efficient Dual Shaft Mixer
Features
SSHJ series biaxial efficient mixer is widely used in mixed feed, food, pesticides, pharmaceutical, chemical and other industries in powder, granular, flake, block, mixed-like and viscous materials.
Rotor using biaxial paddle more institutions, mixing speed, high evenness.
Effective mixing chamber increases, for the mixing of materials can be suitable for various light and heavy.
The top of the machine cavity design to add multiple lines of liquid fat, add more liquid to meet customer needs and to ensure that the liquid atomization and material add between height and improve atomization of liquid mixing effect, to prevent clumping.
Specially designed nesting agencies, Open the door at the bottom of pneumatic, nesting quickly, no residue. Sealed to ensure that no leakage of material.
Compressed air injection system can be configured according to customer needs
Specification
Model | Effective volume(m³) | Each batch mixing amount(kg) | Each batch mixing time(s) | Mixing uniformity (Cv≤%) | Power (kw) |
SSHJ0.2 | 0.2 | 120 | 45-120 | 5 | 2.2 |
SSHJ0.5 | 0.5 | 250 | 45-120 | 5 | 5.5 |
SSHJ1 | 1 | 500 | 45-120 | 5 | 11 |
SSHJ2 | 2 | 1000 | 45-120 | 5 | 18.5 |
SSHJ4 | 4 | 2000 | 45-120 | 5 | 35 |
SSHJ7 | 7 | 3000 | 45-120 | 5 | 37 |
SSHJ8 | 8 | 4000 | 45-120 | 5 | 45 |
