SFSP56
LEABON

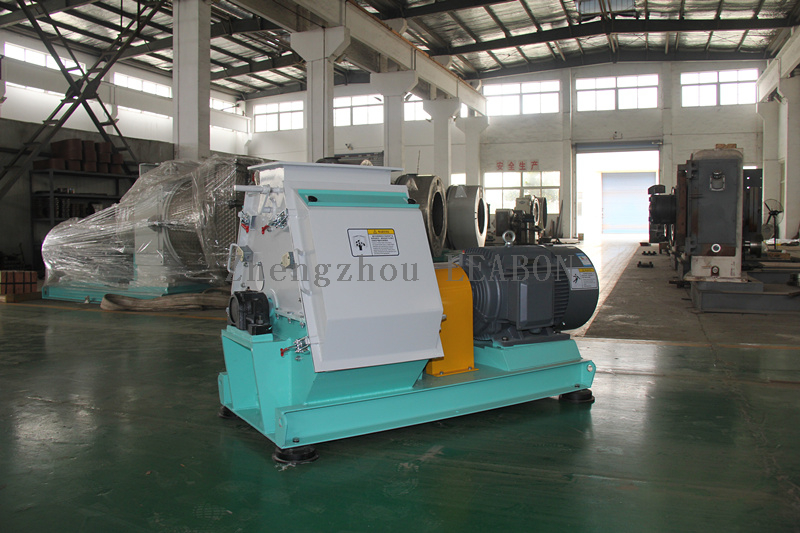

SFSP56 Series Hammer Mill
Features
Widely used in feed mills, food factories, livestock farms, etc;
Used for crushing various kinds of pellet raw materials such as corn, sorghum, wheat, bean, wood chip, etc; it’s an ideal general type hammer mill;
Rotor has passed high precision balance test; small vibration and long service life;
The hammer, screen and pin axle have gone through special heat treatment; they have a long service life and high crushing effect;
The operating door has a self-locking mechanism, convenient, safe and reliable.
Technical parameter
| Model | SFSP56 x 30 | SFSP56 x 36 | SFSP56 x 40 |
| Rotor diameter(mm) | 560 | 560 | 560 |
| Main shaft rotation speed (rpm) | 2950 | 2950 | 2950 |
| Hammer's linear speed(m/s) | 86 | 86 | 86 |
| Crushing chamber width(mm) | 300 | 360 | 400 |
| Hammer Q’ty(pcs) | 16 | 20 | 24 |
| Power (kw) | 11 | 22 | 37 |
| Capacity (t/h) | 1-2 | 3-4 | 5-6 |
| Dimension(mm) | 1400x860x1000 | 1430x860x1000 | 1630x860x1000 |
Note: raw materials for the China dry corn, moisture ≤ 14%；volume ≥ 0.72 T/m³
Mesh hole size: Φ 3mm; hole area percent is no less than 33% for fine crushing.
