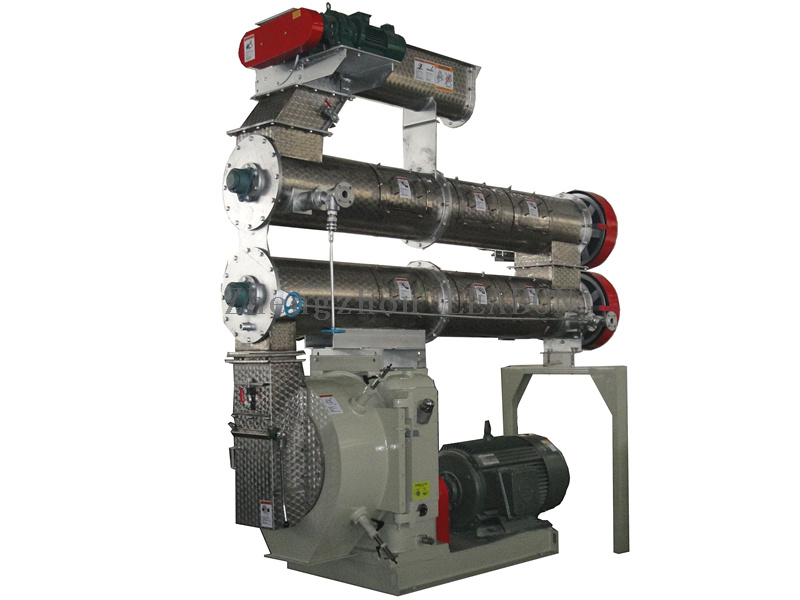

SZLH Ring Die Poultry Feed Pellet Machine

Quantity:
  • SZLH
  • LEABON
  • SZLH Ring Die Poultry Feed Pellet Machine

    · Brief introduction


    SZLH series Ring Mould Pellet Mill is the main machine of making granular fodder, it can be used to make various roughage and refined fodder in livestock farm and feed mill, and also used for checmical industry, fertilizer industry and sugar industry.



  • Features
    1. Main drive adopts high accurate gear drive, with an output of about 20% higher than belt drive, and the die adopts the quick removing clamps.
    2.The drive part of the machine including motor optimize the high quality bearings made in Switzerland and Japan, which ensure high efficient and steady driving with low noice.
    3. Full stainless steel strengthening feeding conditioner, adopts the frequency
    -conversion speed regulating control to guarantee quality pellet feed.
    4. The stainless steel die is made by international advanced German gun drill and American vacuum furnace, has long service life and ensure smoothly pelletizing and high quality.
    5. The international advanced compensation type flexible coupling is of novel and compact structure, safety, low noise and less trouble.
    6. Permanent magnet device of high performance.
    7. Adopt international advanced pipeline system and inlet pressure regulator.
    8. If it is used together with N8 counter flow cooler, 150×2d rotary sifter and advanced fineteeth crumbler, the pellet feed can reach the highest quality.
    9. Pellet mill with two or three conditioners can be custom-made to produce high quality poultry, livestock and aquatic feed also fertilizer.



  • Main Data
Model Main power
(kw)
Out-put
(t/h)
Power of
Conditioner(kw)
Power of screw feeder(kw) In-side of rind die(mm)
SZLH250 22 0.5-1.5 2.2 0.55 250
SZLH320 37 2-3 2.2 0.75 320
SZLH350 55 3-5 3 0.75 350
SZLH400 75/90 3-10 5.5 1.5 400
SZLH420 90/110 3-14 5.5 1.5 420
SZLH508 110/132/160 6-15 7.5 2.2 508
SZLH558 180/200 10-20 11 2.2 558
SZLH678 220/250 25-30 18.5 3 678
