Flat Die Animal Feed Pellet Mill

Quantity:
Inquire Add to Basket

  • PM

  • LEABON

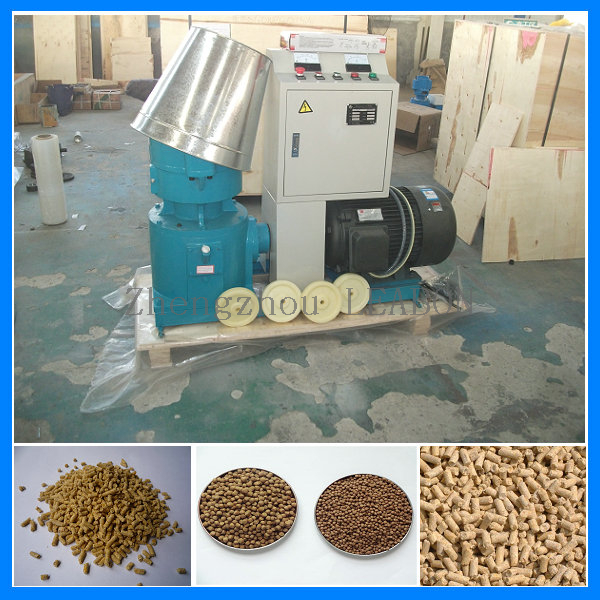

                                     Flat Die Animal Feed Pellet Mill
1. Usage of the machine

1) It is used to produce pellet feed for pig, cattle, sheep, rabbit, chicken, duck, fish,etc;
2) To make straw granule
3) To make inorganic fertilizer granule

2. Main features are as follows

1) Simple structure, wide applicability, small floor space, low noise
2) Powder feed, do not add water or little water granulation can be carried out.
3)The moisture content of pellets smaller, more conducive to storage.
4)Grain hardness, surface finish, internal curing fully, can improve digestion and absorption of nutrients. So pathogenic microorganisms and parasites can be killed, be suitable for feeding chicken, rabbit, fish, duck and experimental animals.
5)The models has1.5~20 various diameter dies, be suitable for granulation of different materials and get the best results.
6)Be suitable for various materials, suppression effect can be guaranteed.

3. Technology date

  PM-A：diesel engine feed pellet machine

Model Power(hp) Capacity (kg/h) Weight (kg) Dimension(mm)
PM-200A 15 200-300 280 1180*560*950
PM-230A 22 300-400 280 1180*560*950
PM-260A 30 400-600 450 1840*700*1160
PM-300A 55 600-800 520 2200*600*1230
PM-360A 55 800-900 600 2270*620*1260
PM-400A 55 900-1100 750 2270*620*1260


PM-B: electric motor feed pellet machine
Model Power(kw) Capacity(kg/h) Weight(kg) Dimension(mm)
PM-200B 7.5 200-300 230 100*430*950
PM-230B 11 300-400 320 1140*470*970
PM-260B 15 400-600 380 1200*520*1070
PM-300B 22 600-800 /450 1270*520*1070
PM-360C 22 800-900 470/500 127*52*107
PM-400C 30 900-1100 630/660 147*60*115


PM-P: PTO Driven feed pellet machine

Model Power(ph) Capacity(kg/h)） Weight(kg) Overall Dimension(mm)
PM-200P 15 200-300 160 770*560*1020
PM-230P 22 300-400 180 770*560*1020
PM-260P 35 400-600 230 770*560*1150
PM-300P 55 600-800 290 770*560*1150
PM-360P 55 800-900 330 870*850*1160
PM-400P 55 9010-1100 420 870*850*1160
