9TMRW3
LEABON
8474390000

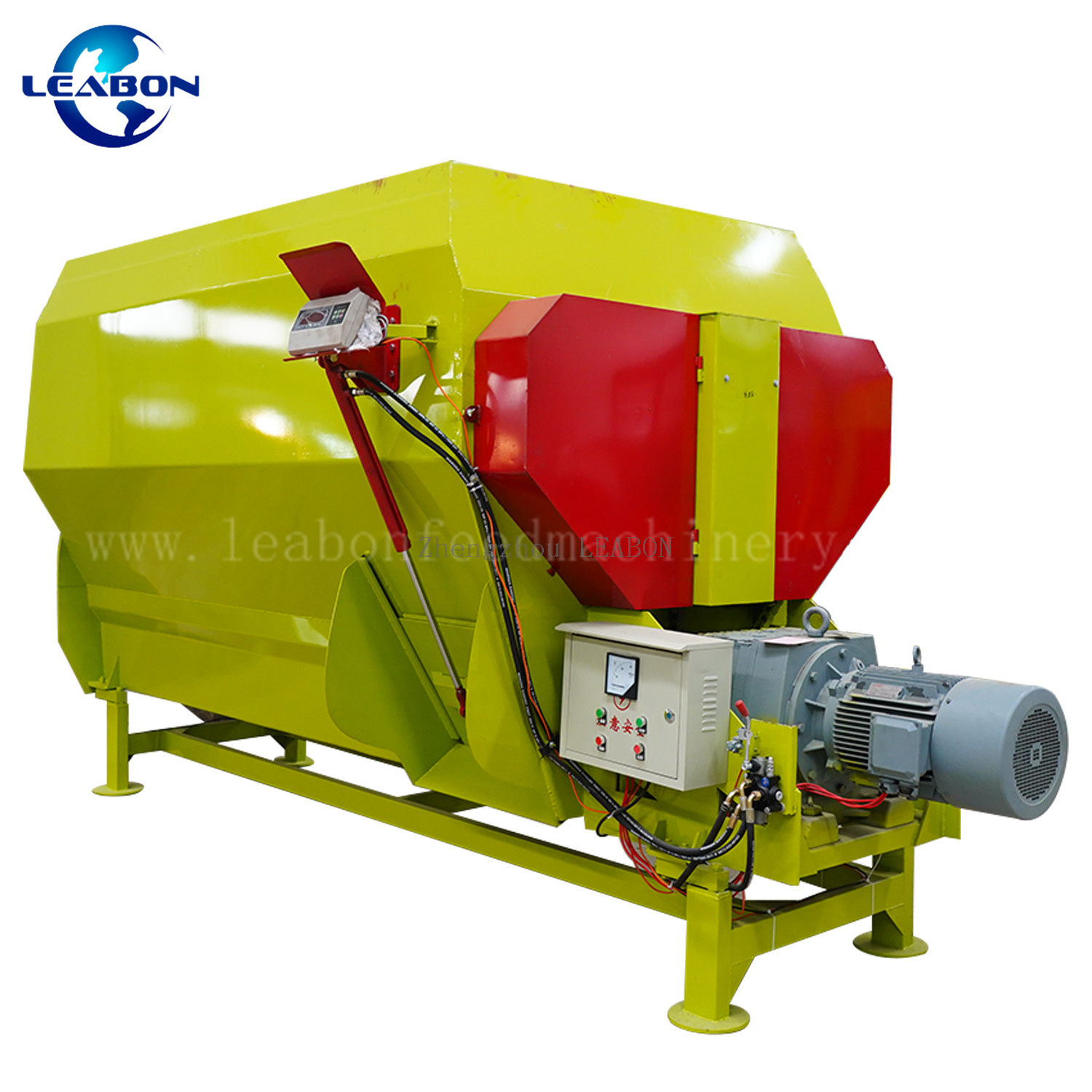

Introduction - Horiozntal Electric Motor Type TMR Mixer:
It can fully mixed coarse materials, fine materials, minerals, microbes, and other additives to provide adequate nutrition to meet the cows' need. TMR feeding technology can ensure that every ration of dairy cattle hasstable concentrate-roughage ratio and nutrient concentration, which is a great change of dairy farming.
TMR feed mixer, also known as the whole mixed diet feed mixer, TMR feed preparation machine, TMR feed mixer, TMR mixer, is a set of crushing, mixing in one feed processing equipment. It is suitable for feed farming in farming and animal husbandry breeding areas, large and medium-sized farms and standard communities.
Technical Parameter of TMR Mixer :
| Model | 9TMRW3 | 9TMRW-5 | 9TMRW-9 | 9TMRW-12 |
| Motor Power(kw) | 11 | 15 | 22 | 30 |
| Capacity(kg/h) | 1000-1500kgs/h | 2000-3000kgs/h | 4000-5000kgs/h | 6000-7000kgs/h |
| QTY of blades(PCS) | 33 | 40 | 58 | 69 |
| QTY of twisted dragon(PCS) | 3 | 3 | 3 | 3 |
| Bottom plate thickness | 5mm | 6mm | 8mm | 10mm |
| Side plate thickness | 4mm | 5mm | 6mm | 6mm |
| Reducer | Jiangsu JZQ400 | Jiangsu Guomao R137 | Jiangsu Guomao R147 | Jiangsu Guomao R149 |
| Dimension(mm) | 3600*1700*1900 | 3900*1800*2100 | 4600*2000*2500 | 5300*2200*2600 |
| Weight(kg) | 1700 | 2300 | 3200 | 4100 |
