| Quantity: | |
|---|---|
9TMRW-5
LEABON
8474390000

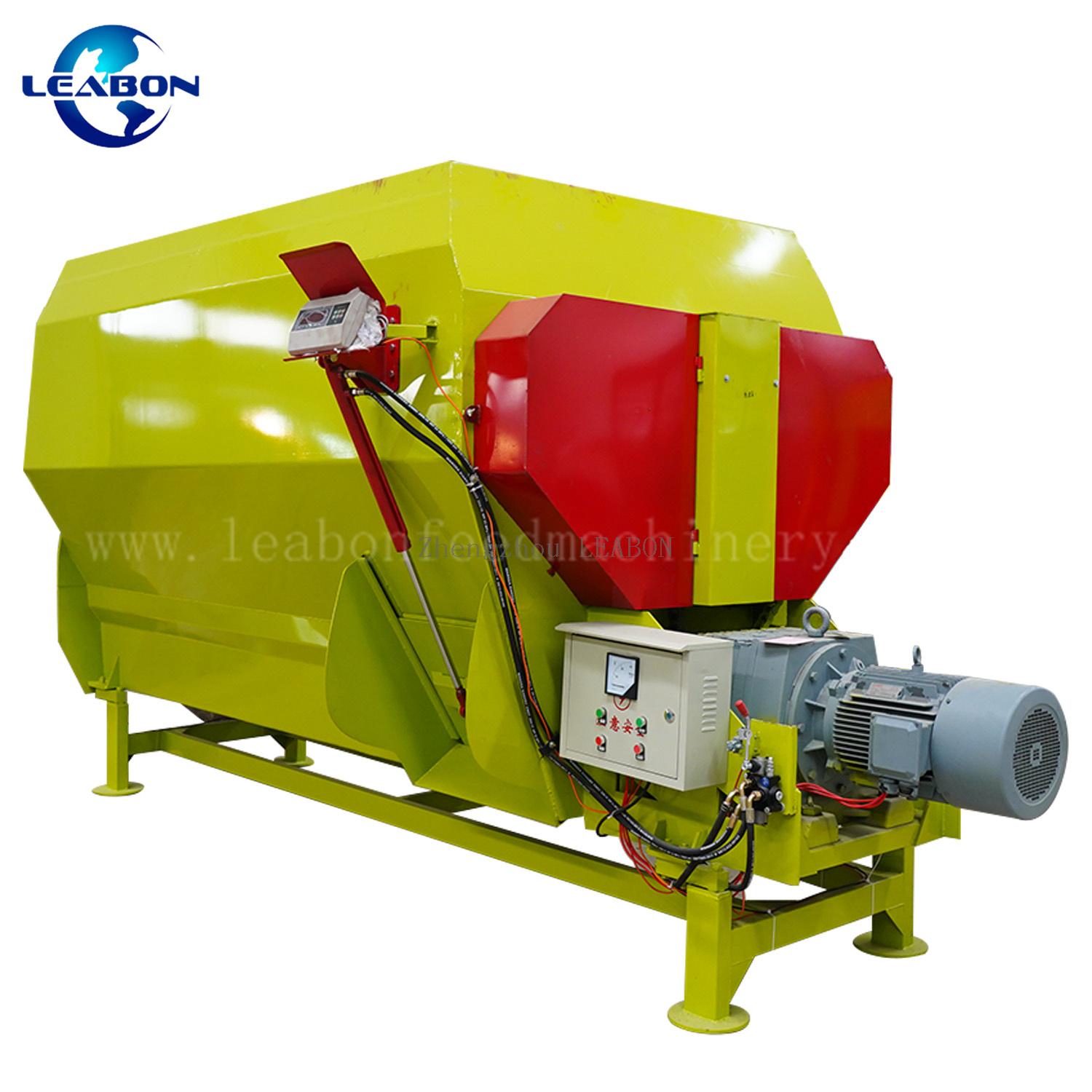

Introduction - PTO Type TMR Mixer :
TMR feed mixer, also known as the whole mixed diet feed mixer,TMR feed preparation machine,TMR feed mixer, TMR mixer,is a set of crushing,mixing in one of the feed process ling equipment.It is suitable for feed farming in farming and animal husbandry breeding areas, large and medium-sized farms and standard communities It can be used for chopping and mixing of all kinds of forage grasses,crop stalks and silage feed stuffs and mixing them with fine feed stuffs. According to the design structure points,it can be divided into: horizontal and vertical feed mixer; according to the use of points: a fixed feed mixer and self-propelled fee ed mixer.
Technical Parameter of PTO Type Horizontal TMR Mixer :
| Model | 9JGW-13 | 9JGW-10 | 9JGW-5 |
| Overall size(mm) | 47010*1900*2300 | 4200*1900*2300 | 3700*1900*2300 |
| Qty of blade(pcs) | Moving blade 52 Fixed blade 8 | Moving blade 42 Fixed blade 6 | Moving blade 37 Fixed blade 4 |
| Rotating speed(r/min) | 12-16 | 12-16 | 12-16 |
| Weight(kg) | 2600 | 2100 | 1900 |
| Capacity of material hopper(m³) | 13.2 | 10.03 | 5.3 |
| Matching power(kw) | 22-30 | 18.5-22 | 15-18.5 |
| Productivity(t/h) | 5000-7000 | 3800-6000 | 2000-4000 |
Introduction - PTO Type TMR Mixer :
TMR feed mixer, also known as the whole mixed diet feed mixer,TMR feed preparation machine,TMR feed mixer, TMR mixer,is a set of crushing,mixing in one of the feed process ling equipment.It is suitable for feed farming in farming and animal husbandry breeding areas, large and medium-sized farms and standard communities It can be used for chopping and mixing of all kinds of forage grasses,crop stalks and silage feed stuffs and mixing them with fine feed stuffs. According to the design structure points,it can be divided into: horizontal and vertical feed mixer; according to the use of points: a fixed feed mixer and self-propelled fee ed mixer.
Technical Parameter of PTO Type Horizontal TMR Mixer :
| Model | 9JGW-13 | 9JGW-10 | 9JGW-5 |
| Overall size(mm) | 47010*1900*2300 | 4200*1900*2300 | 3700*1900*2300 |
| Qty of blade(pcs) | Moving blade 52 Fixed blade 8 | Moving blade 42 Fixed blade 6 | Moving blade 37 Fixed blade 4 |
| Rotating speed(r/min) | 12-16 | 12-16 | 12-16 |
| Weight(kg) | 2600 | 2100 | 1900 |
| Capacity of material hopper(m³) | 13.2 | 10.03 | 5.3 |
| Matching power(kw) | 22-30 | 18.5-22 | 15-18.5 |
| Productivity(t/h) | 5000-7000 | 3800-6000 | 2000-4000 |
