Square Round Hay Bale Crusher Vertical Straw Bales Shredder

Straw Bales Shredder is widely used in cutting straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches, essential equipment for large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.
Availability:
Quantity:
  • 9FC-80

  • LEABON

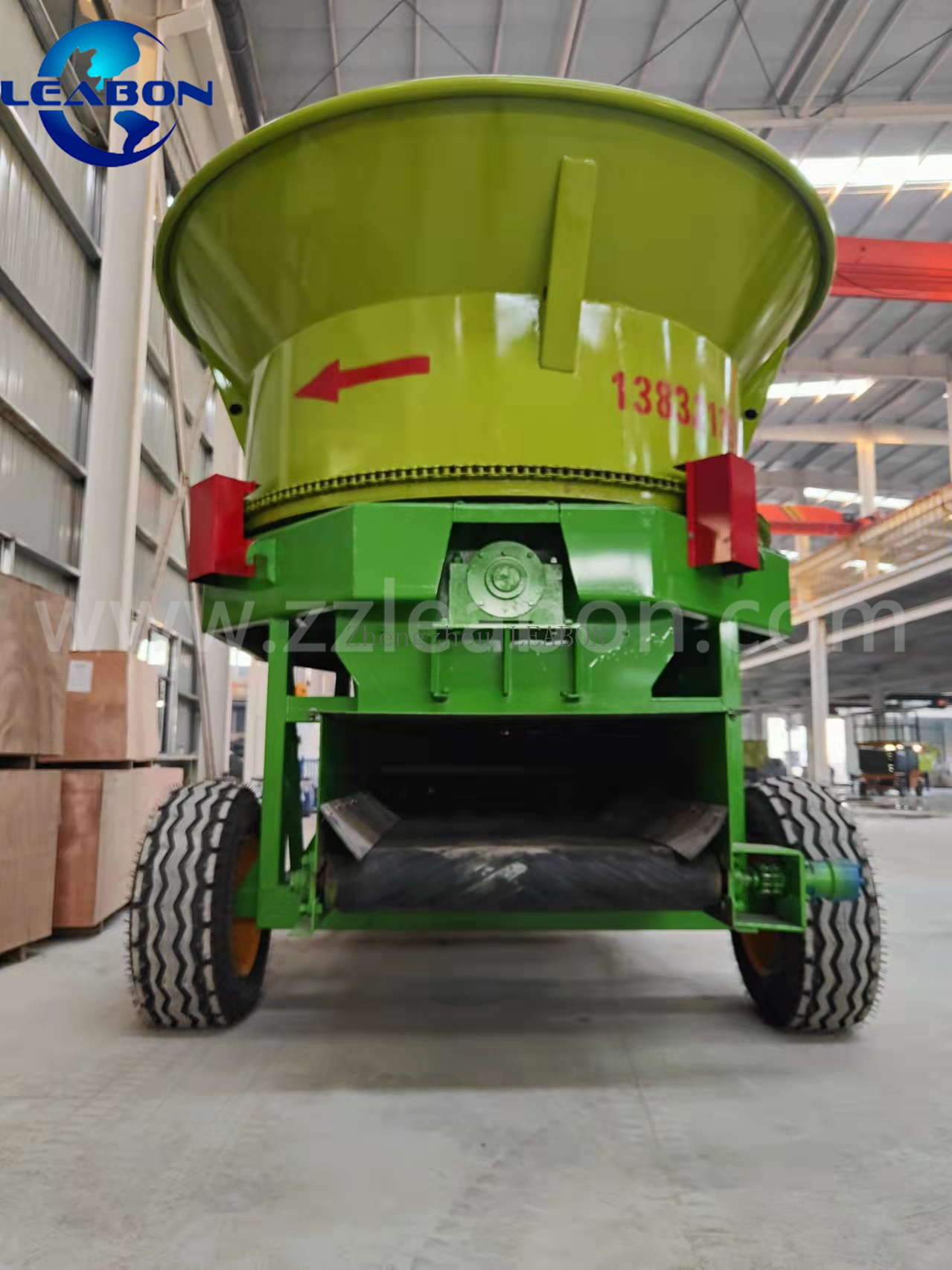

Square Round Hay Bale Crusher Vertical Straw Bales Shredder

Introduction of baler shredder:
shredder

Straw Bales Shredder is widely used in cutting straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches,
essential equipment for large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.

It can handle all kinds of bales with different thicknesses, different lengths, and different moisture contents, with a wide range of moisture and adaptability,
and convenient disassembly and transportation.


Technical Parameter of shredder:

Model 9FC-80 9FC-100 9FC-130 9FC-150 9FC-300
Power 22-30kw 45-55kw 75kw 90kw 90-110kw
Capacity 2-3t/h 3-5t/h 5-7t/h 8-10t/h 8-12t/h
Crushing effect 3-8cm 3-8cm 3-8cm 3-8cm 3-8cm
Top diameter 1800mm 2200mm 2600mnm 2800mm 3000mm
Bottom diameter 1500mm 1800mm 2200mm 2400mm 2600mm
Number of blades 24pcs 24pcs 24 pcs 24 pcs 24 pcs
Discharge method Spray Spray type / bottom discharge Bottom discharge Bottom discharge Bottom discharge
Total Weight 1700kg 2300kg 2800kg 4300kg 4500kg
Dimensions 3.2*1.8*2m 3.6*2.2*2.3m 4*2.6*2.5m 4.7*2.8*2.8m 4.7*3.0*2.8m

Finally products of shredder:
