Alfafa Bales Crusher Grinder Belt Grass Bale Shredder

Straw Bales Shredder is widely used in cutting straw, peanut vine, sweet potato vine, corn stalk, cotton stalk, grass, seaweed and all kinds of tree branches, essential equipment for large and medium farm, biomass power station, biogas digester, and biomass fuels plant and so on.
Availability:
Quantity:
  • LBF-1000
  • LEABON

Alfafa Bales Crusher Grinder Belt Grass Bale Shredder


Introduction of baler shredder:

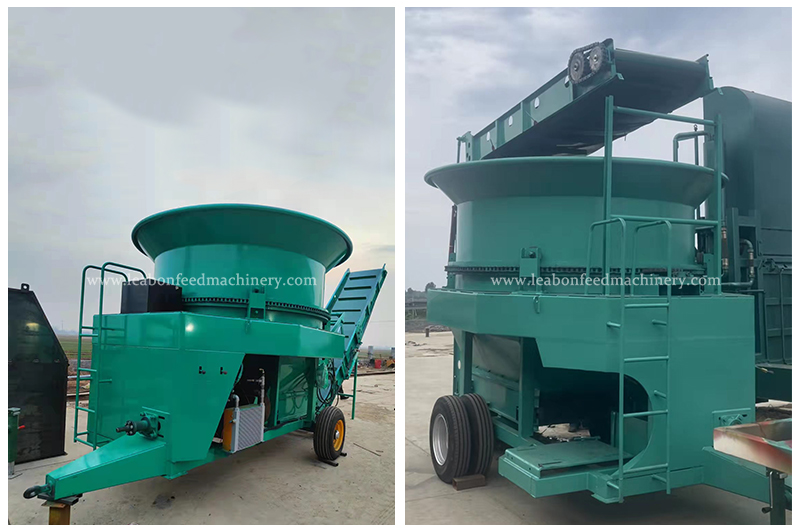

grass baler cutter (1)

The combined tractor power of F1000 is 90~180 hp, the rotational speed of the PTO shaft is 1000r/min. According to the different grass grinding lengths, the production efficiency can reach 3-15 tons per hour, and for grain grinding like corns, it can reach 40-70 tons per hour. Besides meeting the farm's self-use requirement of 5000 heads beefs, it can be also used to process for other farms to collect extra fee, thereby improve the utilization rate of the equipment and increase more benefits.


Technical Parameter of baler shredder:


Type

LBF-1000

Rotor hammer mill

Fly hammer: 64pcs, wear-resisting alloy material

Fly hammer shaft: 8pcs, strength alloy steel

Bearing: SKF

Drive: PTO

Combined power

Tractor drive: 90-180HP

Motor drive: 90-150kw

PTO speed: 1000/r-min

Screen mesh

Thickness: 6mm;Diameter of hole: 6mm-125mm

Drum/Tub

thickness: 3mm

Outside width: 3.2m

Inside Dia: 2.3m; Depth: 0.8m

Screw pusher

Type: bi-column symmetric; Length: 1150mm

discharging conveyor

Type: folding hydraulic drive

Maximum lifting height: 4.19 m

Belt: Rubber

Transport size

6500x3200x3200 mm ; 5300kg


Finally products of baler shreder:

grass baler cutter (5)
