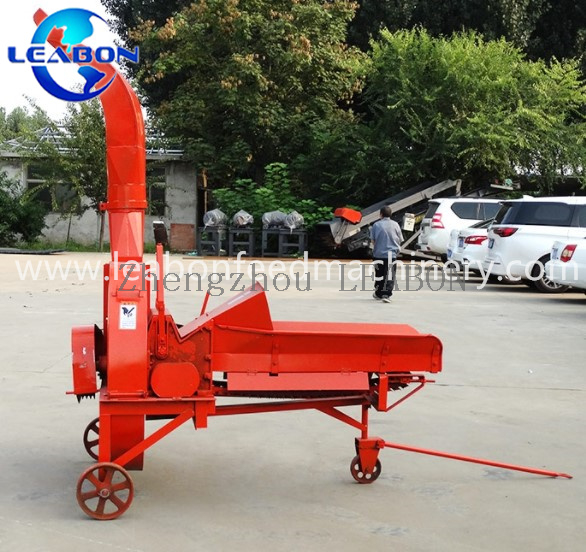

Electric Diesel Grass Straw Cutter Chaff Cutter

The machine is powered by a motor. The power is transmitted to the main shaft, and the gear at the other end of the main shaft transmits the speed-regulated power to the grazed grass through a gear box, a universal joint, etc.
Availability:
Quantity:
  • LB-30.0
  • LEABON

Electric Diesel Grass Straw Cutter Chaff Cutter

Introduction of Chaff Cutter:

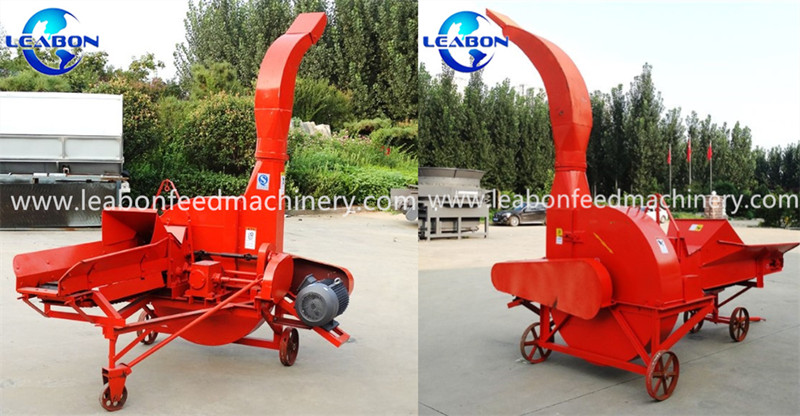

grass cutter (

The machine is powered by a motor. The power is transmitted to the main shaft, and the gear at the other end of the main
shaft transmits the speed-regulated power to the grazed grass through a gear box, a universal joint, etc.
When the material to be processed enters between the upper and lower pressure grasshoppers, it is pressed.
Holding and feeding at a certain speed into the cutting mechanism, after the high-speed rotary cutter is chopped and
thrown out of the machine through the grass.


Technical Parameter of Chaff Cutter:

Type Capacity(t/h) Power(kw) Overall Dimension (L*W*H) (mm) Weight(kg)
LB-30.0 25-38 30 4290*2510*4510 2300
LB-12.0 12 -18 18.5 2630*2230*4120 1000
LB-10.0 8-10 15 2620*2140*4110 880
LB-8.0 6-8 7.5 2140*1600*2750 400
LB-5.0 4.5-5.5 5.5 1740*1580*2320 280
LB-3.0 2.5-3.5 4 1250*1150*1670 138
LB-1.5 1-2 3 820*450*1160 90
LB-0.4 0.4-1.0 2.2 550*450*600 60

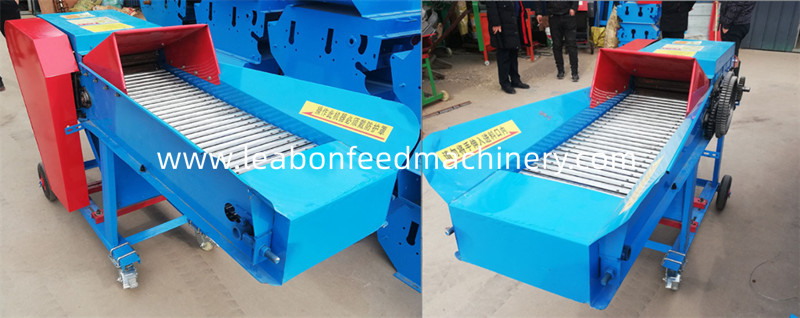

Horizontal Type Chaff Cutter

cutter

Model

LB-4

LB-6

supporting power

4KW

7.5-11KW

machine weight

160kg

210kg

Output

2000-4000kg/h

4000-6000kg/h

moving blades quantity

4

4

Finally products of Chaff Cutter:
cutter
