LB9SL-26
LEABON

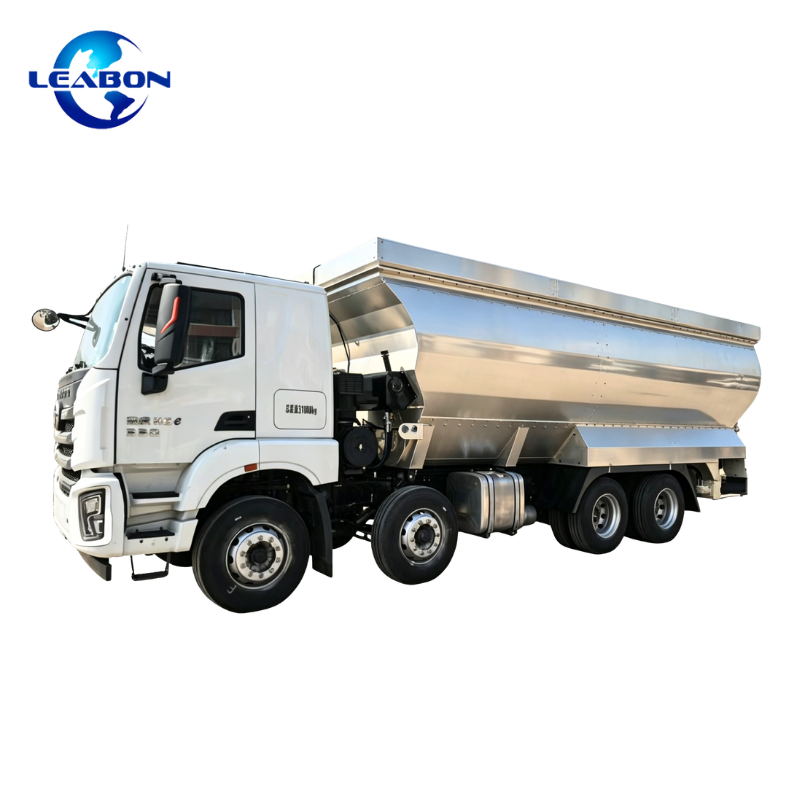

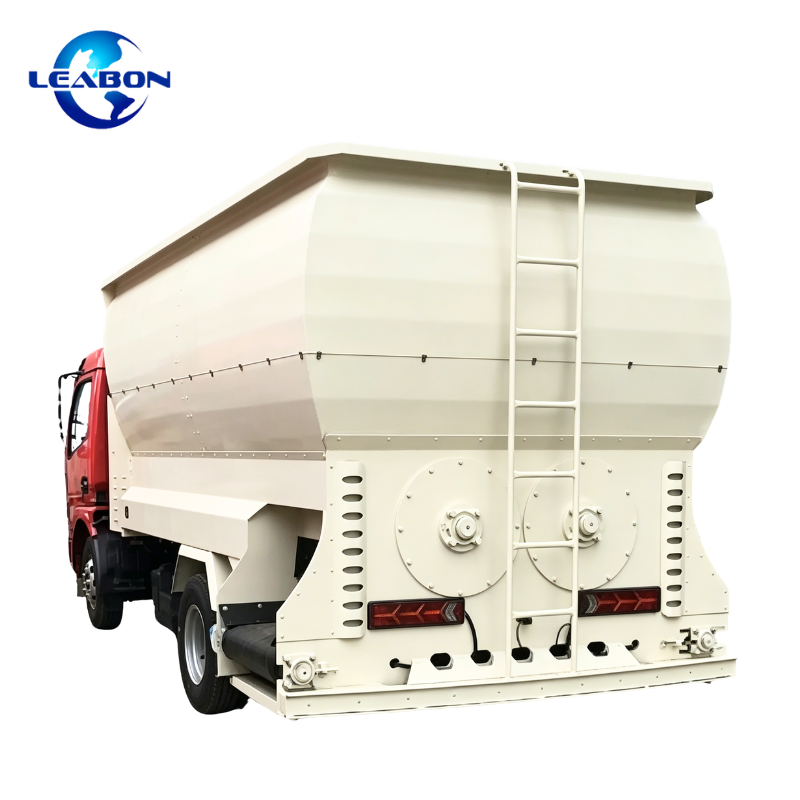

Auger Feed Feeding Machine Silage Feed Spreader Steel Auger Feed Spreader

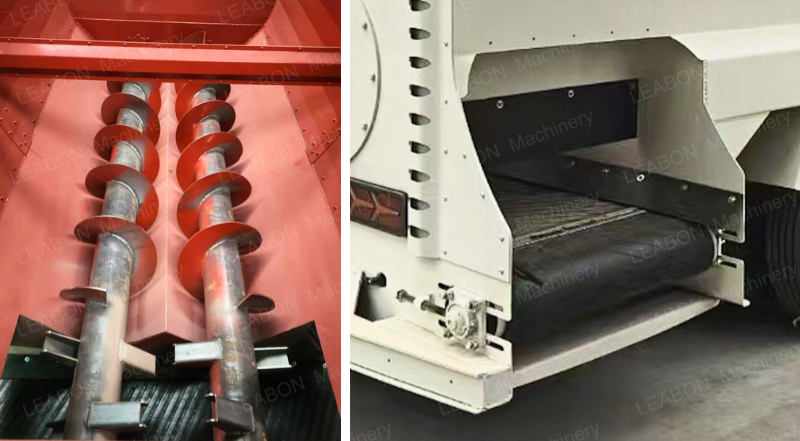

The feed spreader is specialized feeding equipment designed for large-scale livestock farms, suitable for operations raising cattle, sheep, and other livestock; it is used to uniformly distribute mixed feed. It features stable power output and robust load-bearing capacity. Equipped with a high-efficiency auger conveying system and supported by hydraulic transmission, it ensures smooth feed delivery and uniform discharge, making it adaptable to a wide variety of feeding scenarios.
Product Details
The machine boasts a sturdy construction, simple operation, and convenient maintenance; it significantly boosts feeding efficiency, reduces labor costs, and minimizes feed waste, serving as a core component of mechanized feeding systems in modern livestock farms.
Product Parameter
Model | LB9SL-12 | LB9SL-16 | LB9SL-26 |
Matching vehicle model | Foton Ollin | Leading Domestic Brand | Dongfeng Tianjin |
Effective Volume | 12m3 | 16m3 | 26m3 |
Power | 130hp | 160hp | 210hp |
Number of Augers | 2 | 2 | 2 |
Auger Drive Type | Direct-Drive Hydraulic Motor | Direct-Drive Hydraulic Motor | Direct-Drive Hydraulic Motor |
Feeding Method | Auger | Auger | Auger |
Spreading Method | Hydraulic-driven Belt Spreading | Hydraulic-driven Belt Spreading | Hydraulic-driven Belt Spreading |
Spreading Height from Ground | 450 mm | 450 mm | 450 mm |
Maximum Spreading Capacity | 0.12 m³/m | 0.12 m³/m | 0.12 m³/m |
Spreading Distance | 0–800 mm | 0–800 mm | 0–800 mm |
Spreading Direction | Spreading to the left or right (not simultaneously) | Spreading to the left or right (not simultaneously) | Spreading to the left or right (not simultaneously) |
Overall Dimensions | about 6400*2300*2670 | about 6800*2300*2950 | about 8600x2700x3100mm |
Overall Weight | about 5134kg | about 5134kg | about 9000kg |
Applicable Materials
The feed spreader is mainly used with crushed/pulverized forage as the raw material, as a flexible livestock feeding device, primarily used in large-scale or medium-to-small-sized farms for cattle, sheep, pigs, horses, and other livestock. It is especially suitable for operating in narrow aisles within barns. Its core function is to efficiently distribute TMR as well as various forages.
