2FGH-5
LEABON

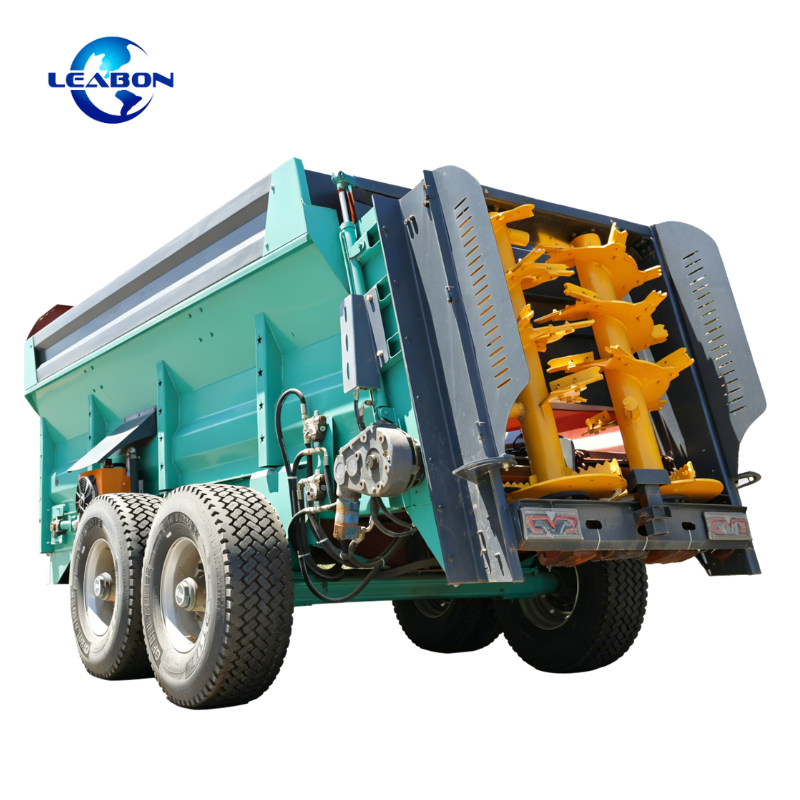

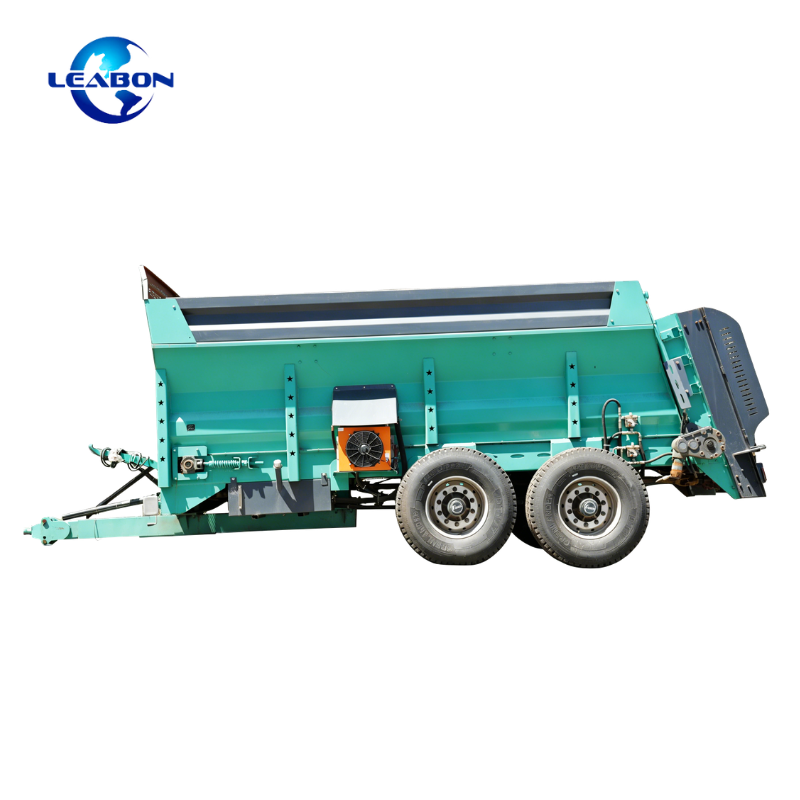

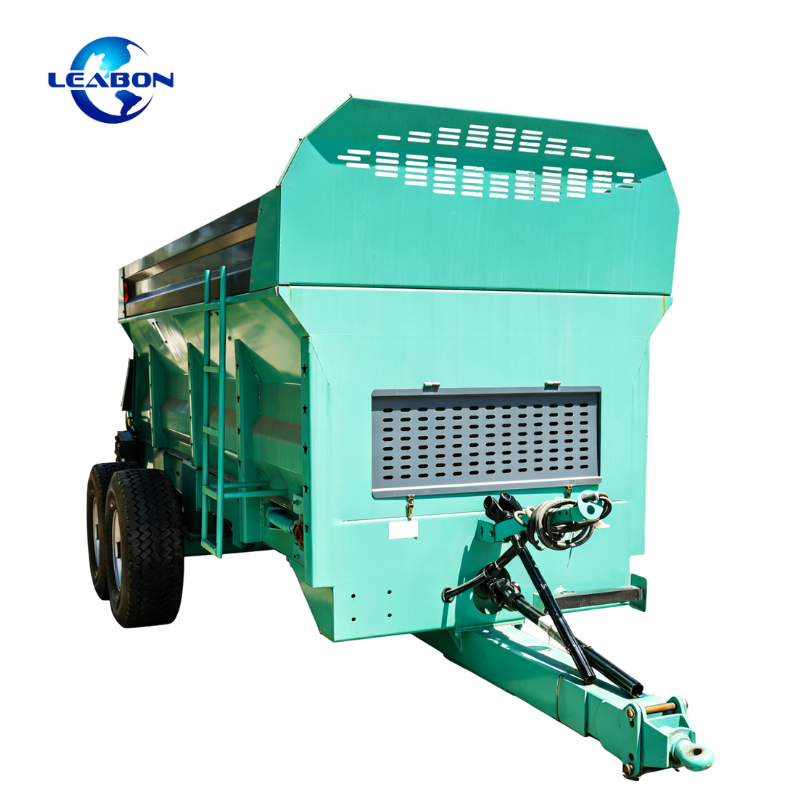

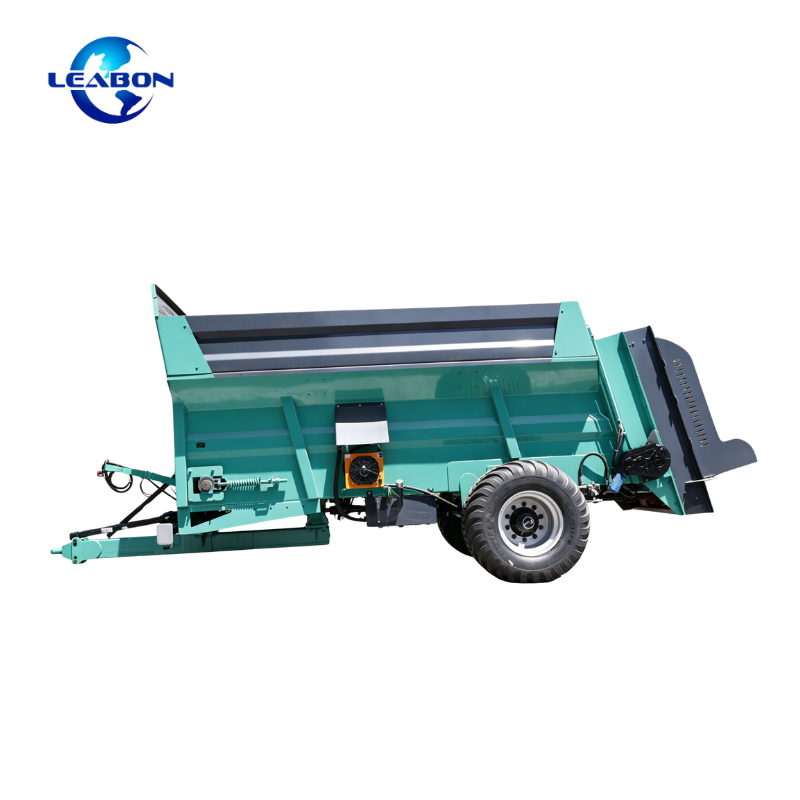

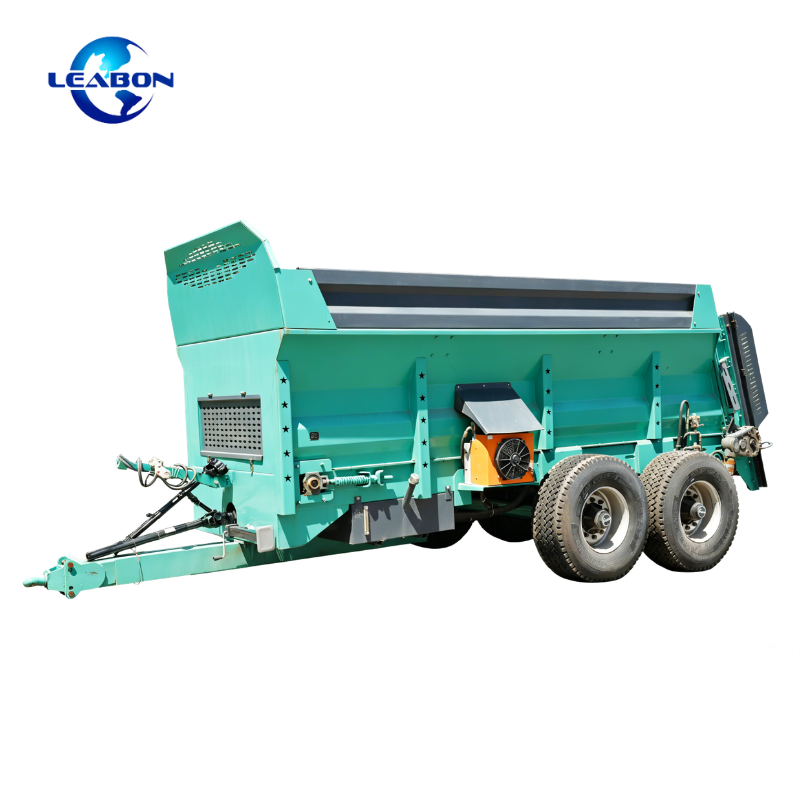

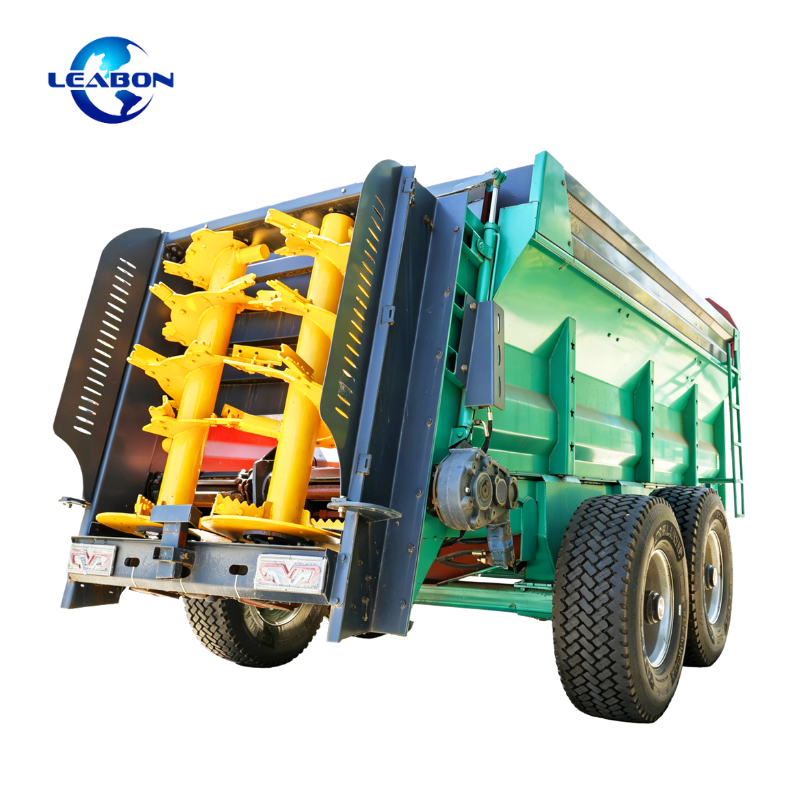

Vertical Auger Muck Spreader Cow Dung Compost Spreader Tractor Towed Manure Spreader
Manure Spreader Machine is an agricultural equipment specifically designed for the even application of livestock manure, organic fertilizer, and farm manure.The machine in the completion of fertilizer spreading at the same time, the crushing edge will be broken to the fertilizer, so that the fertilizer is more uniform, more finely broken, but also to improve the flying effect.
Product Parameter
Model | 2FGH-5 5m3 | 2FGH-8 8m3 | 2FGH-10 10m3 | 2FGH-12 12m3 | 2FGH-15 15m3 |
Tank Body Dimensions (L*Bottom W*Top W*H) m | about 3.25*1.33*1.8*1.1 | about 3.6*2.1*1.63*1.4 | about 4.5*2.1*1.63*1.4 | about 4.45*2.1*1.63*1.55 | about 5.7*2.1*1.5*1.6 |
Length of Drawbar (mm) | 1250 | 1470 | 1500 | 1500 | 1400 |
Matching Power | above 65hp | above 85hp | above 100hp | above 100hp | above 100hp |
Internal Structure | Chain Scraper | Chain Scraper | Chain Scraper | Chain Scraper | Chain Scraper |
Operation Mode | Vertical Spreading Augers | Vertical Spreading Augers | Vertical Spreading Augers | Vertical Spreading Augers | Vertical Spreading Augers |
Dimension (L*W*H) mm | about 5350*2300*2300 | about 5850*2650*2700 | about 6750*2730*2660 | about 6950*2850*2800 | about 7100*2730*3200 |
Weight (kg) | about 1900 | about 3400 | about 3800 | about 4100 | about 4100 |

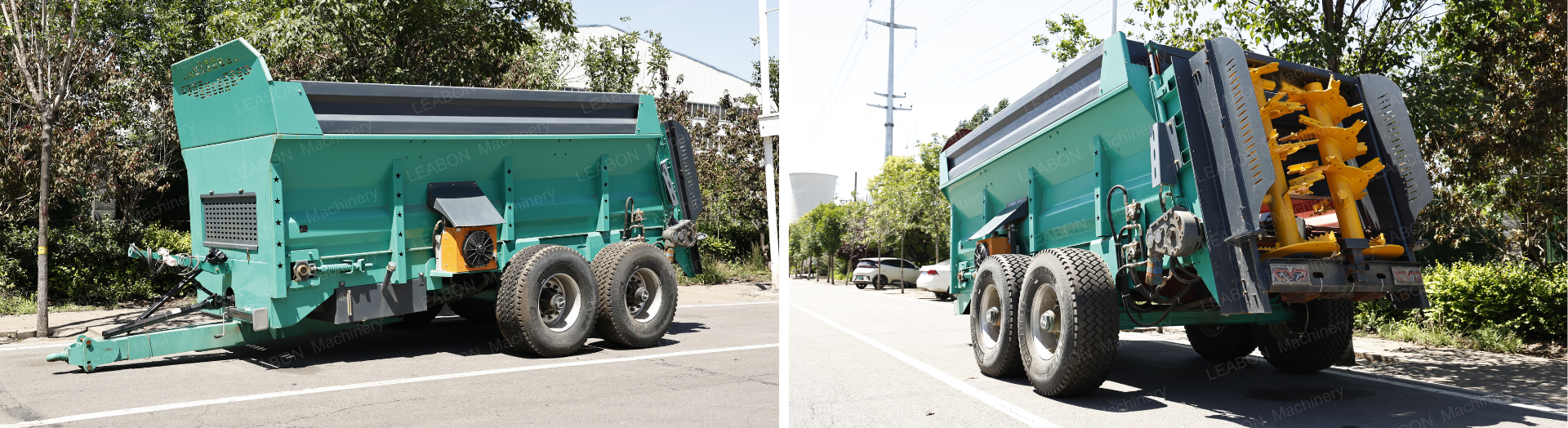

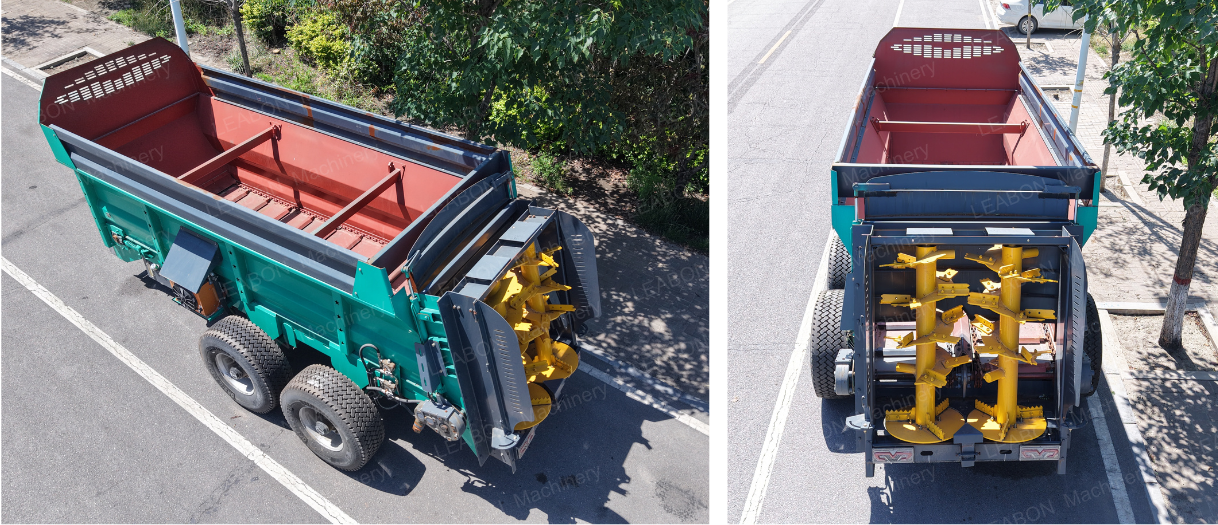

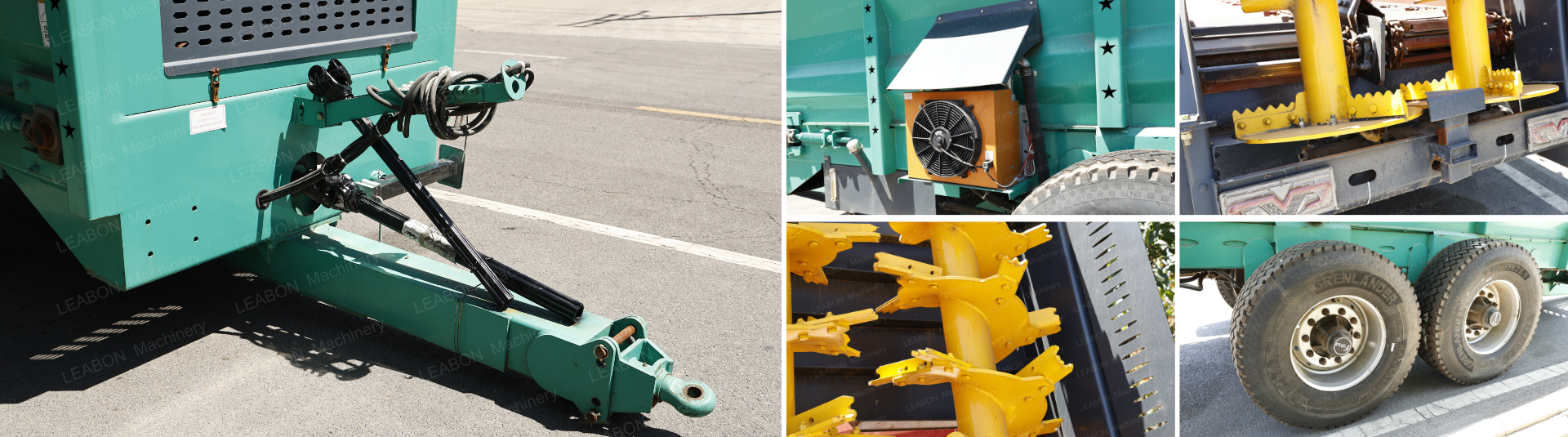

Product Details
Applicable Materials
This manure spreader is ideally suited for the application of a wide range of livestock and poultry manures, including chicken, cow, sheep, and pig manure, as well as microbial and other organic fertilizers.
