Why Do High-end Rice Processing Plants Choose This Dryer? Let's Take A Look

What is the working principle of grain dryer?

Grain crops is input to the top by bucket elevator, through the feeding device, to ensure that the equipment during operation is always in full load condition. Induced draft fan introduce hot air into inside of the tower body, through the combined effects of inwardly inverted V-shaped baffle bottomless and processing and staggered rows of V-shaped baffle, so that crops can be mixed with hot air, as well as dry air access routes, a majority of dried air can be recycled, water vapor generated by drying the material discharged from the dryer exhaust system, it consumes very little fuel. 5HKB series low-temperature batch circulating grain dryer adopts low temperature drying method to achieve drying.

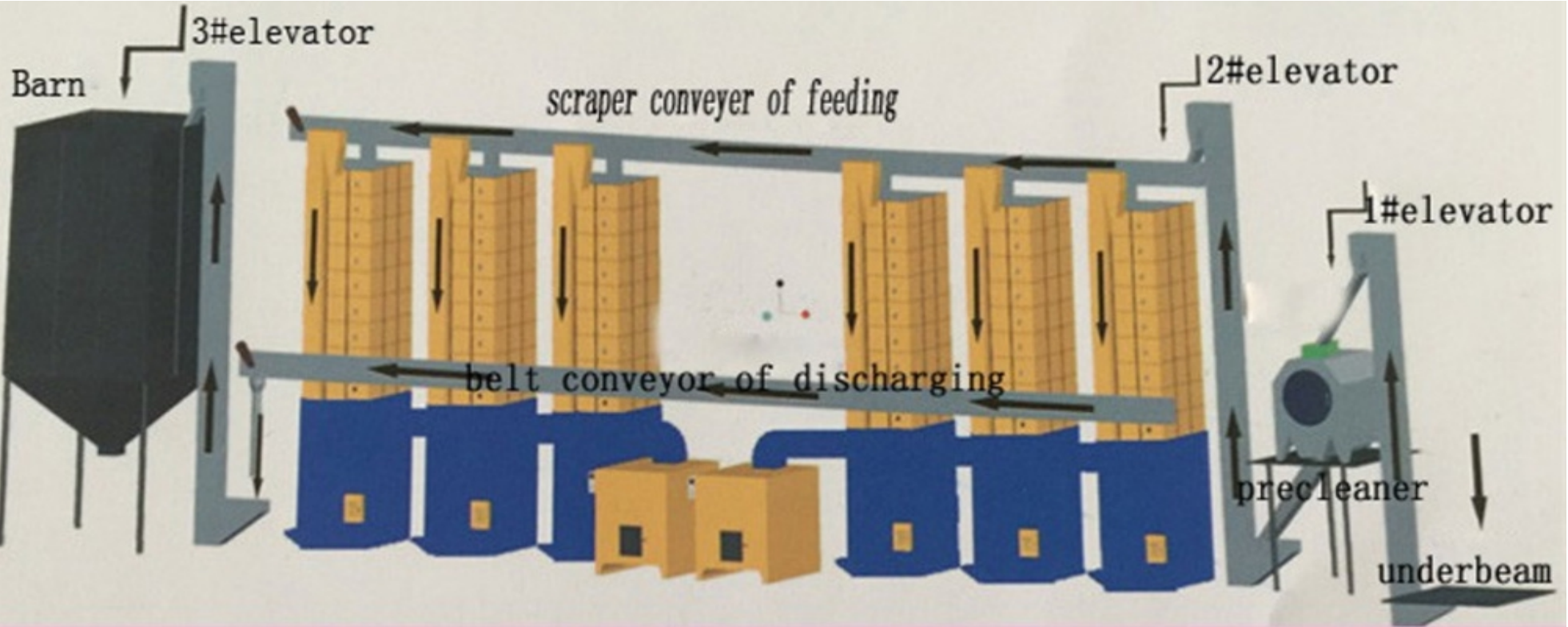

Grain into underbeam→into precleaner by 1#elevator→flow into 2#elevator→into scrapper→scrapper carry the grain into dryer by pneumatic valve→grain be dried inside the dryer→the finished product from the tube of opening grain→into the belt conveyor grain will be sent to the 3# elevator by belt conveyor→grain will be carried to barn by 3#elevator
