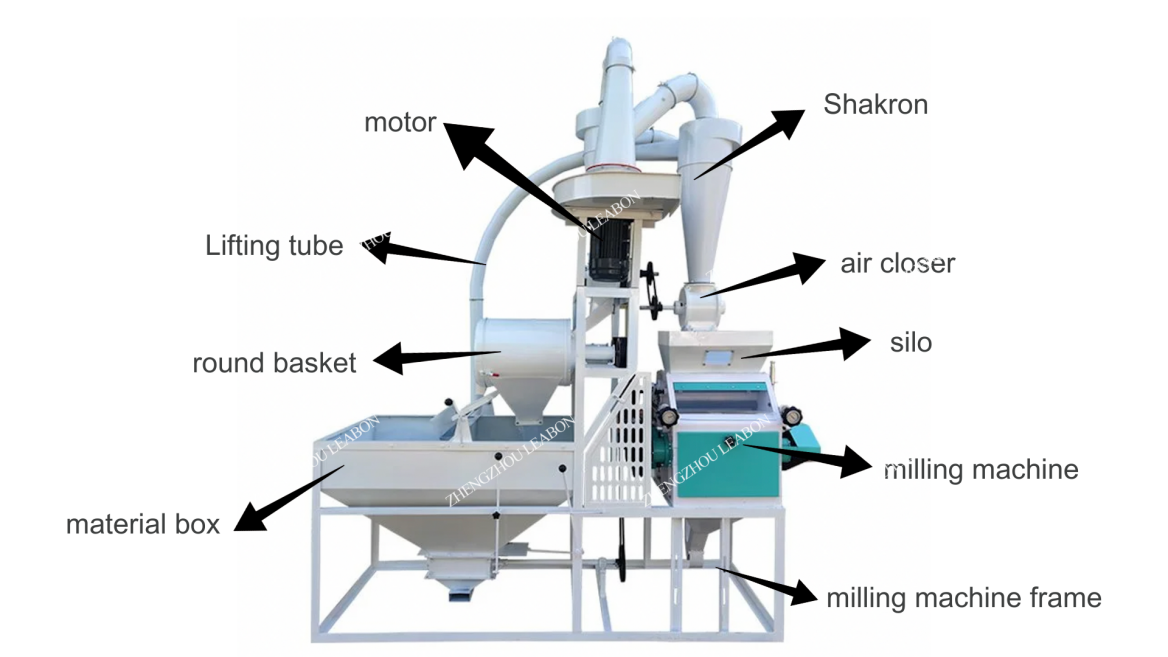

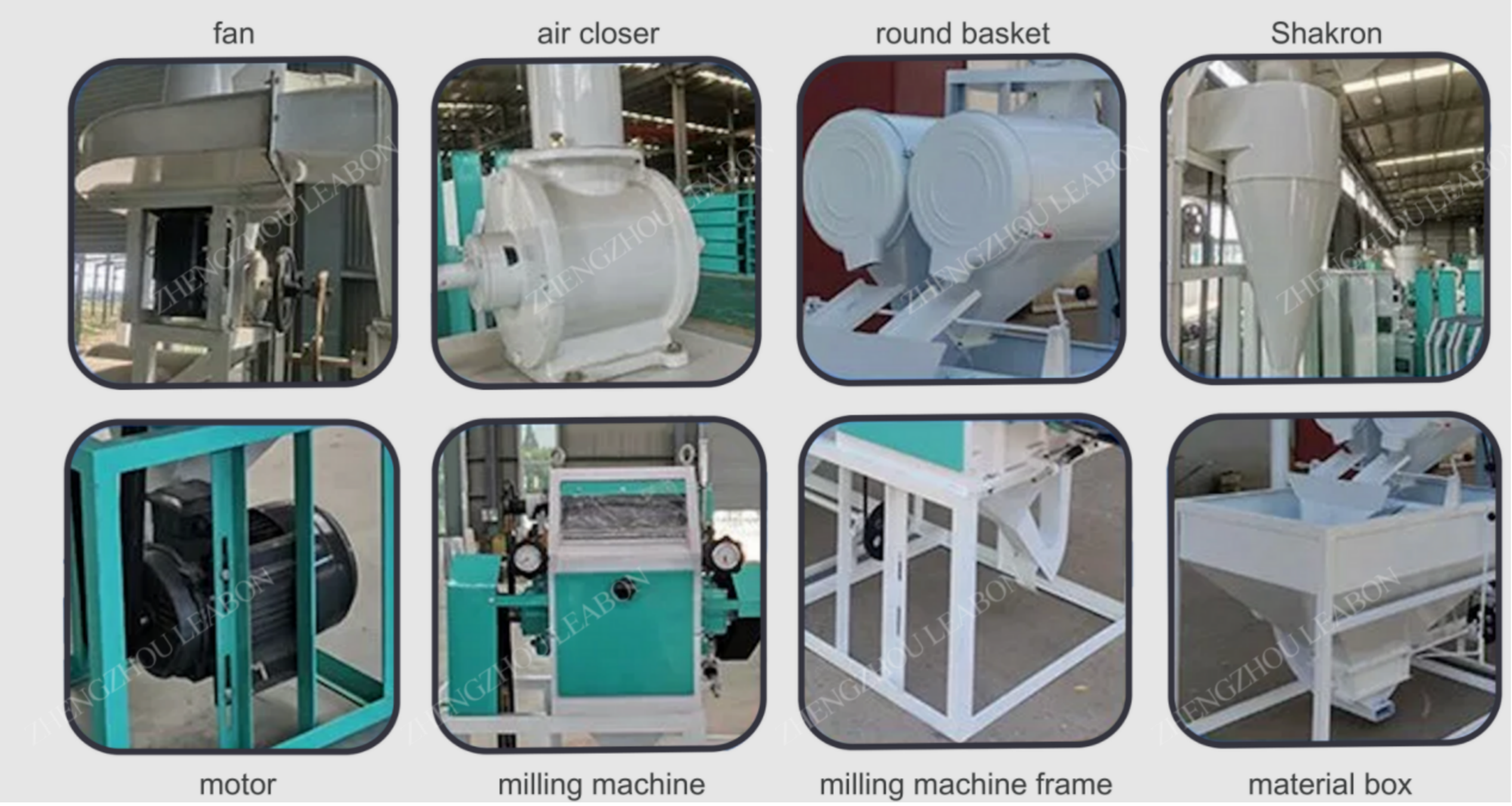

The Structure of the Grain Milling Machine
Operation and Use Method of Grain Milling Machine
1)Raw grain preparation: raw grain must be cleaned to remove impurities, add water moistening grain for 12 to 14 hours. The water content should be controlled between 13.5 and 14.5%.
2)Check that the transmission parts should be correct and flexible; Operation handle, power switch and other positions are correct.
3)Adjust the flow rate, roller rolling distance, etc. It is required to achieve uniform flow, parallel synchronization of roller spacing, and the operation of the equipment should be without noise before it can work.
4)Equipment on and off: when the boot. The machine should be started first and then cut off, and then operate in the order of closing the grinding brake after the grinding head bin has the material. When the machine is stopped, the material should be stopped first and then the mill should be shut down.
5)Flow adjustment: flow control raw materials should be small, wheat bran should be large. The flow rate can be adjusted by adjusting the gap between the flow plate and the feed roller. The flow rate can be adjusted by rotating the handwheel screw.
6)Milling requirements gap: raw grain 0.15 ~ 0.35mm, crushing 0.08 ~ 0.15mm, generally four to five times can meet the requirements of the powder. Pay attention to the uniformity of each pass load, the first pass power consumption is large, after each pass should gradually increase the flow.
7)Emergency stop should be made in the following cases:
a.The motor has abnormal sound and odor;
b.The motor housing temperature exceeds 70℃.
