How To Peel Corn Using A Corn Peeling Machine?

Views: 5     Author: Site Editor     Publish Time: 2025-06-23      Origin: Site

How To Peel Corn Using A Corn Peeling Machine?

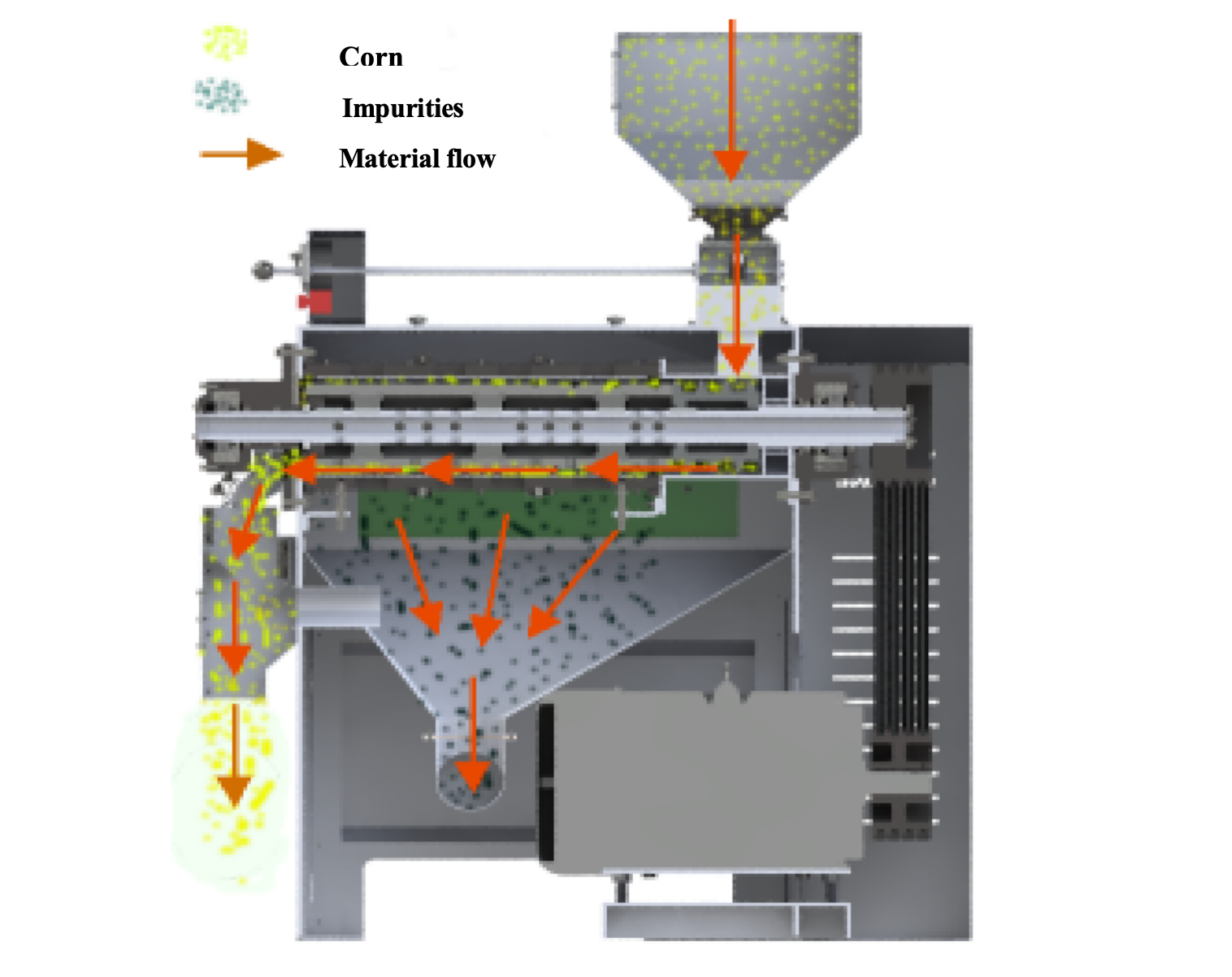

Working Principle of Corn Peeling Machine

Corn enters the propulsion chamber from the feed hopper through the flow feed regulating device, is transported to the sand roller by the screw propeller, and spirals forward along the surface of the sand roller. The sharp sand on the surface of the sand roller rotating at a certain linear speed grinds the corn skin layer, and causes the corn kernels to rub against the screen plate to remove the corn kernels. At the same time, the two-way air intake of the main shaft is supplemented by a strong bran suction wind net to separate the bran powder from the corn kernels and discharge it from the screen hole. A suction port is also configured at the discharge port to further reduce the temperature of the finished material and perform secondary cleaning of the finished material.

Corn peeling machine1


Precautions Before Starting The Maize Peeling Machine

1) Check whether the bolt connections are loose. If they are loose, tighten them in time;

2) Check whether the belt tension is appropriate and adjust it;

3) Turn the pulley by hand to check whether the main shaft rotates normally. There should be no jamming phenomenon. The bearing runs smoothly without noise. If there is any abnormality, handle it in time;

4) Check whether the screen plate is installed firmly. If it is loose, tighten it in time;

5) Check whether there are foreign objects in the feed port and various places. If there are foreign objects, clean them in time.

Corn peeling machine2

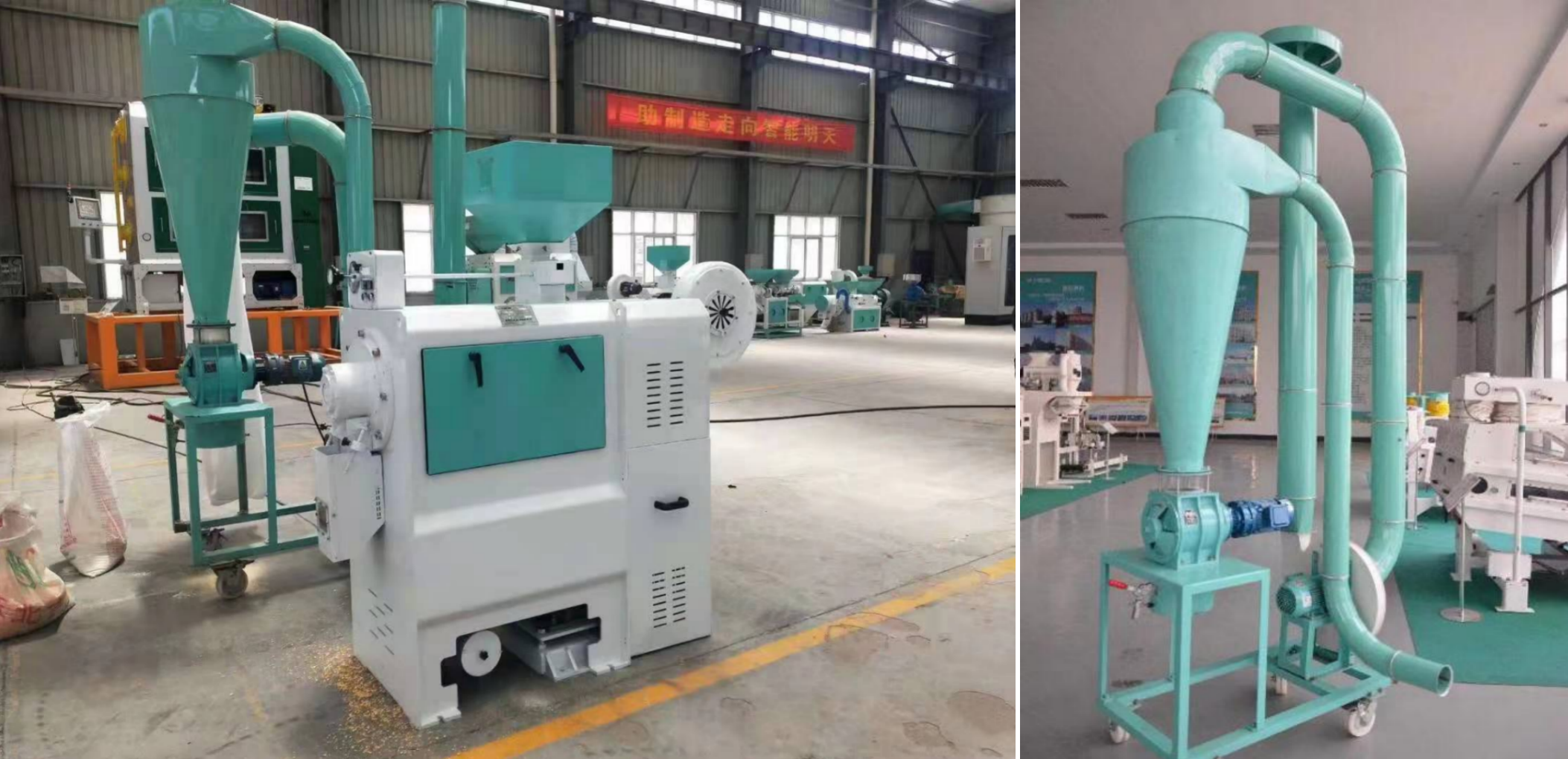

Corn Peeler + High Pressure Mobile Wind System

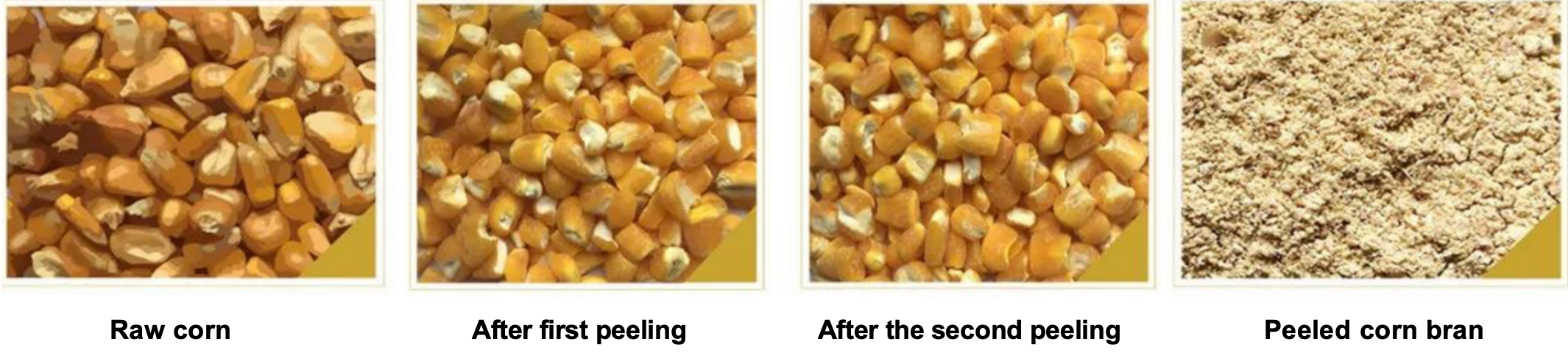

Raw Materials & Final Products of Corn Peeler

Corn peeling machine3
