Fish Feed Pellet Extruder

Views: 0     Author: Site Editor     Publish Time: 2023-09-08      Origin: Site

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
kakao sharing button
Fish Feed Pellet Extruder

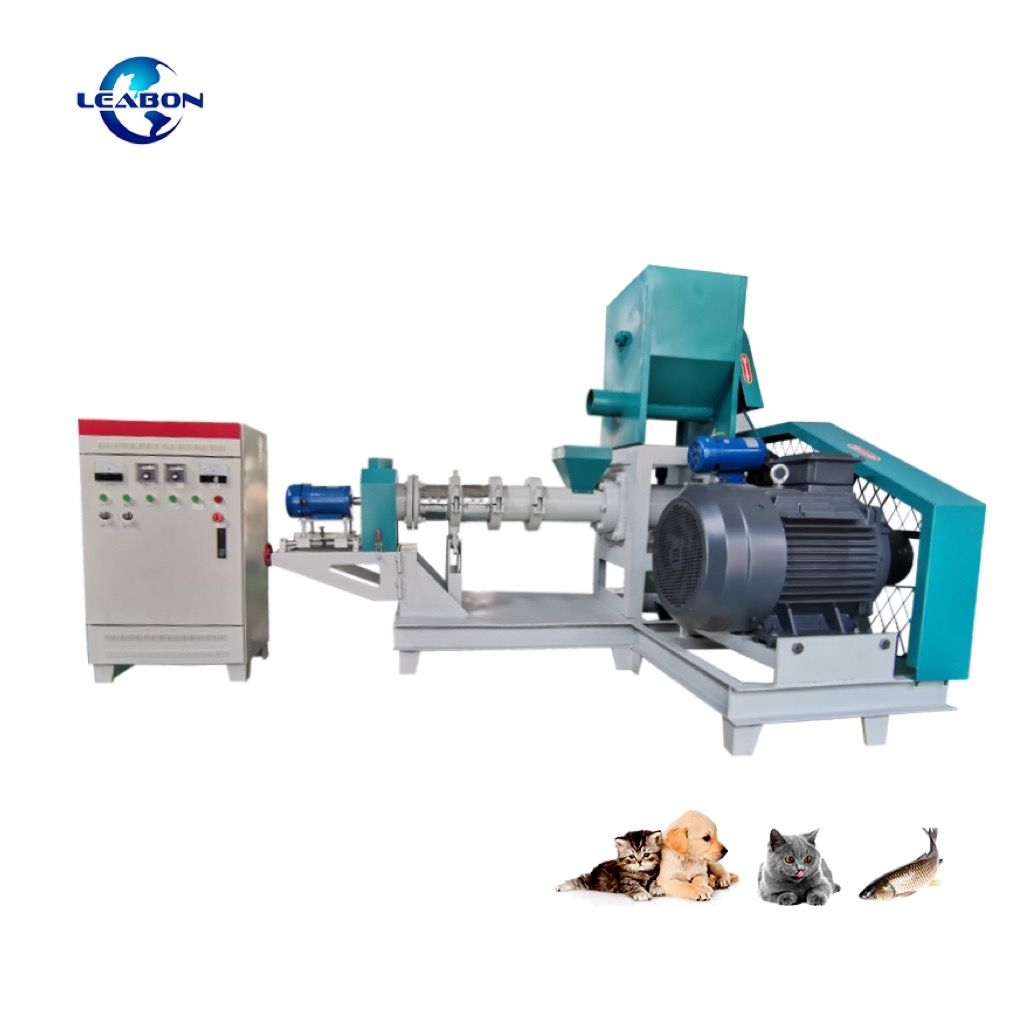

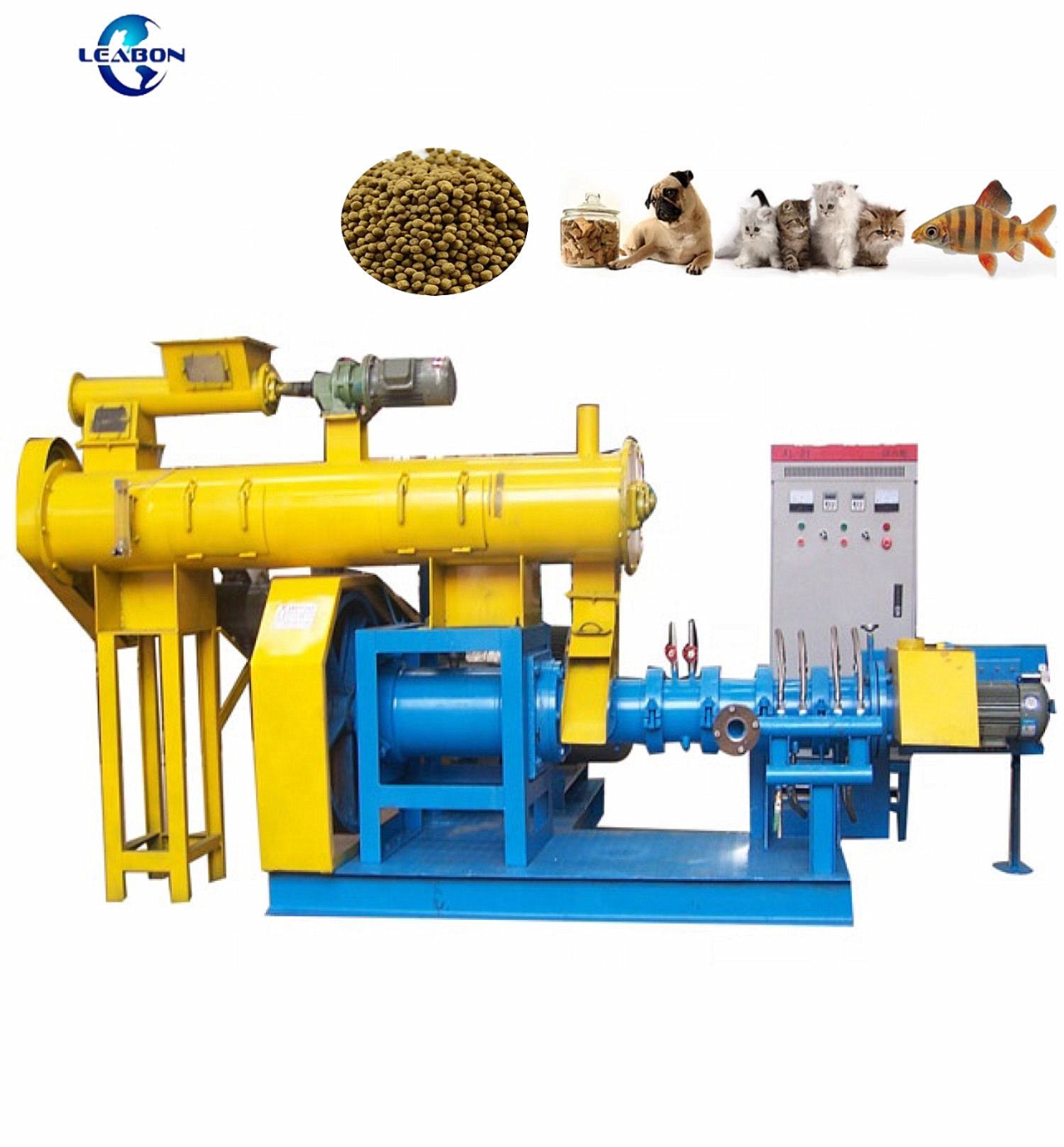

dry feed extruder 4 screw feed extruder(1)

Product Description

1.It takes the international advanced granule structure,adopting the soft knife joint forms,realize the CVT,can arbitrary cut into the required length of product,it is not easy to produce the burr.

2.With distinctive turbocharged punching equipment,ensure the forage yield and quality.And with electric heating device to improve feed puffing rate.

3.Speed-adjustable feeding device,more convenient operation,evenly feed,prevent suppress machine.

4.The discharging template change is simple,only change the required aperture template if you need different aperture feed.

5.Produced floating feed pellets can float on water more than 12hours,not pollute the water and easy digested.

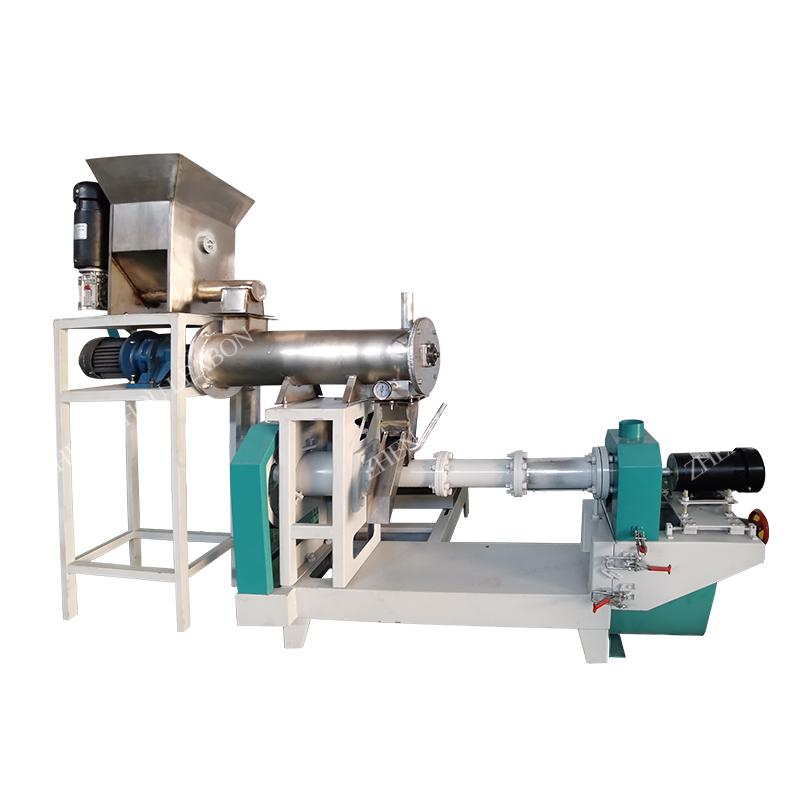

dry feed extruder wet feed extruder
Dry Type Feed Extruder Wet Type Feed Extruder

Different Type Extruder Product Parameter

Wet Type Extruder

Model

Capacity
(kg/h)

Main
Power(kw)

Feeding
Power(kw)

Cutting
Power(kw)

Modulator

Power(kw)

Screw
Diameter(mm)

DSP60-III

180-200

15

0.75

0.75

0.37

φ60

DSP70-III

250-300

18.5

0.75

0.75

1.5

φ70

DSP80-III

350-400

22-30

1.1

0.75

1.5

φ80

DSP90-III

500-600

37

1.1

1.1

2.2

φ90

DSP120-III

700-800

55

1.1

1.1

2.2

φ120

DSP135-III

1000-1500

75

1.5

2.2

2.2

φ133

DSP160-III

1800-2500

90

2.2

2.2

3.5

φ155

DSP200-III

3000-4000

132

2.2

3.0

4.5

φ195

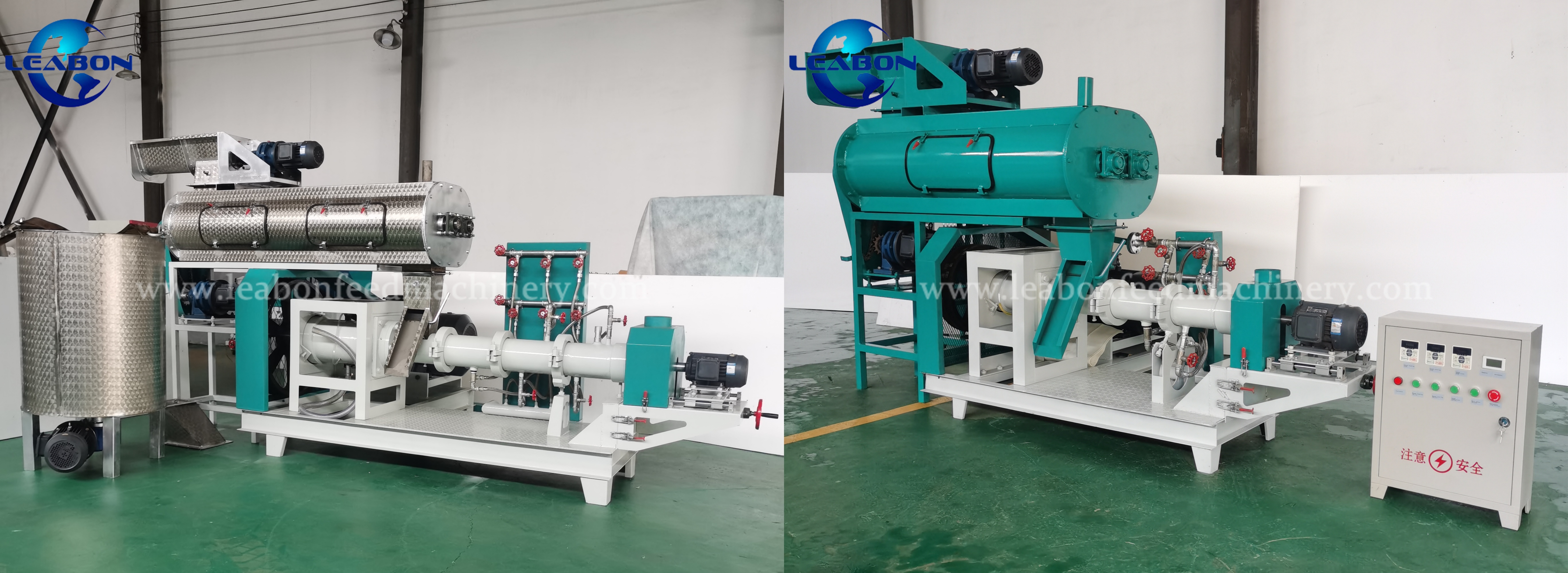

wet feed extruder1

Dry Type Extruder

Model

Capacity
(kg/h)

Main
Power(kw)

Feeding
Power(kw)

Cutting
Power(kw)

Screw
Diameter(mm)

DGP40-C

30-40

5.5

0.4

0.4

φ40

DGP50-C

60-80

11

0.4

0.4

φ50

DGP60-C

120-150

15

0.4

0.4

φ60

DGP70-B

180-200

18.5

0.4

0.4

φ70

DGP80-B

200-250

22

0.4

1.1

φ80

DGP90-B

320-350

30

1.1

1.5

φ90

DGP120-B

500-600

55

1.1

2.2

φ120

DGP135-B

700-800

75

1.1

2.2

φ133

DGP160-B

1000-1200

90

1.5

2.2

φ155

DGP200-B

1800-2000

132

1.5

3.0

φ195

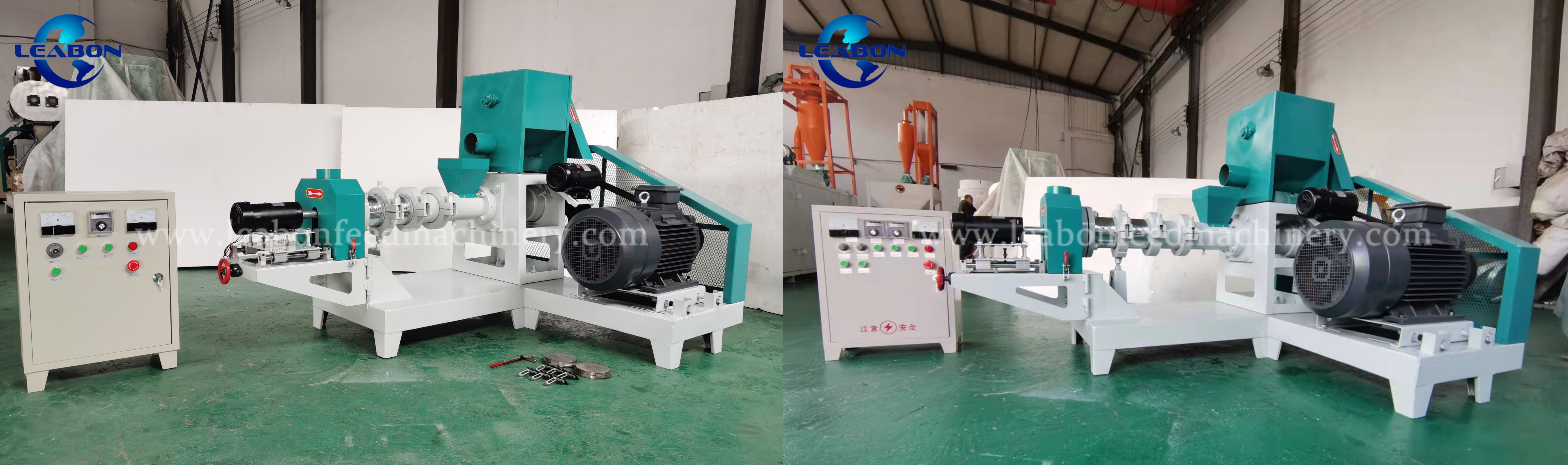

dry feed extruder1

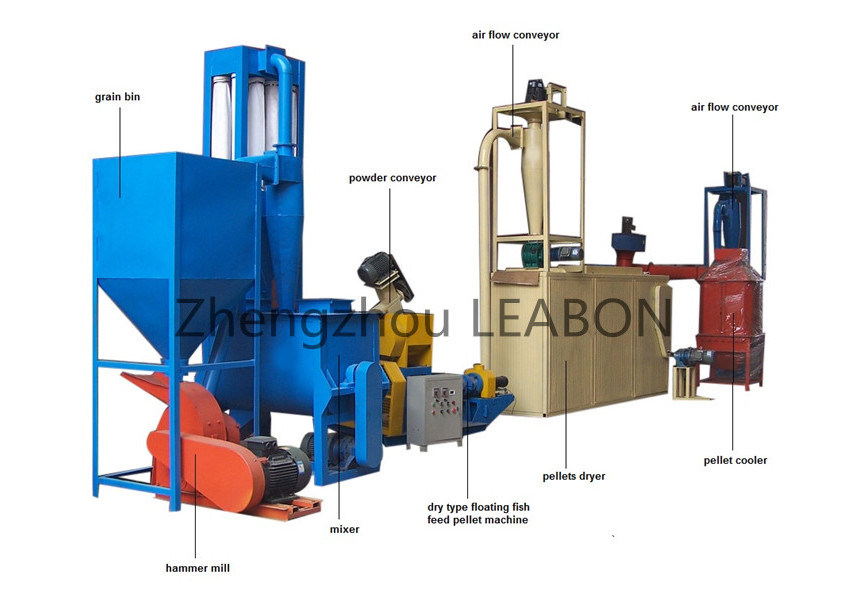

About Fish Feed Pellet Extruder Line

fish feed extruder line

About Raw Material And Final Product

Raw Material

fish feed extruder

Final Product

fish feed extruder1

Good quality-ontime delivery-good service
Leabon Equipment
1)We are the professional manufacturer, which has abundant experience of the machine, also we own research and development team.

2) The professional and timely 24 hours after-sale service.

3) The relative manual and video of the machine installation and instruction will be provided for you.

4) ODM&OEM Provided.

5) The engineer is available to  install and training for oversea projects.
