CM-25A/B Ring Die Feed Pellet Machine

Views: 0     Author: Site Editor     Publish Time: 2024-05-13      Origin: Site

CM-25A/B Ring Die Feed Pellet Machine

CM-25A/B Ring Die Feed Pellet Machine

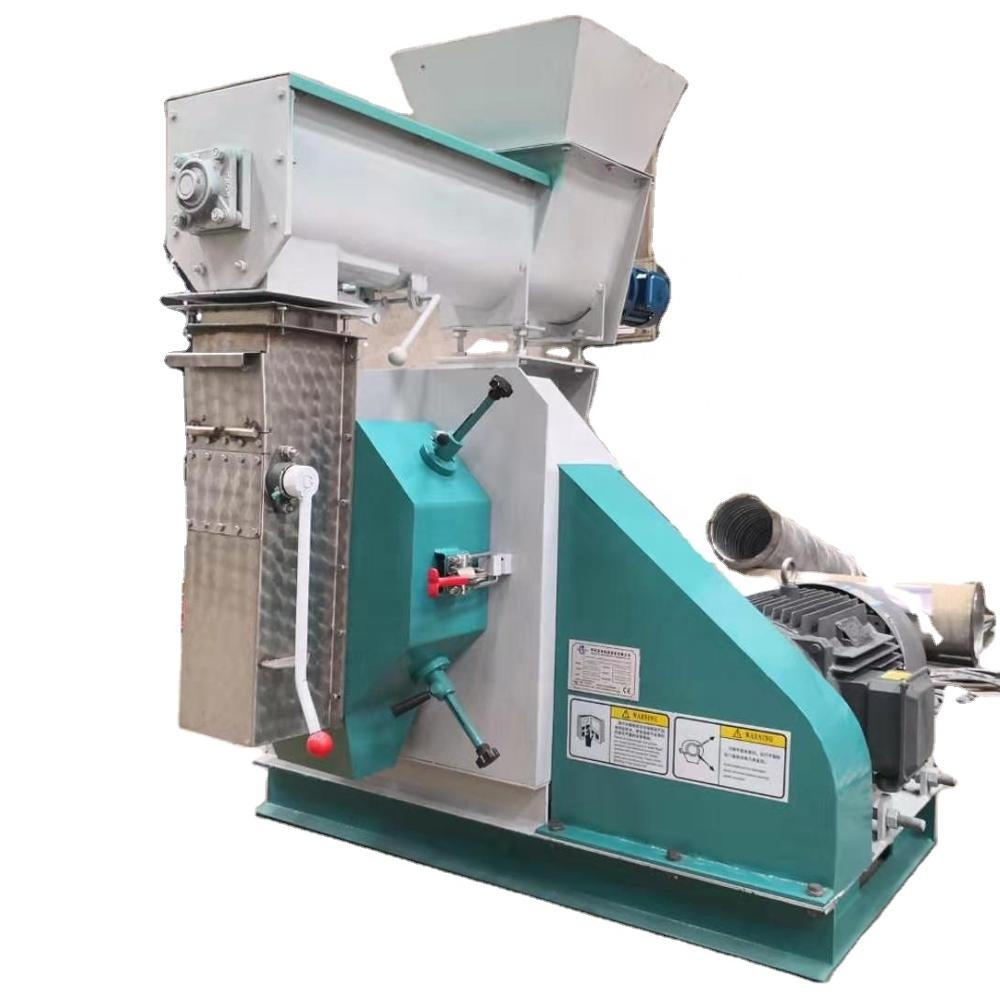

feed pellet machine2

1. What’s the purpose and scope of feed pellet machine ?

This machine is a new generation granulator manufactured by digesting and absorbing advanced technology at home and abroad. The transmission part adopts a high-strength narrow V-belt transmission, which runs smoothly and has low noise. At the rotating part, high-quality bearings are selected to ensure high-speed and stable rotation. The raw material conveying part uses a variable-speed motor to control the feeding, which is convenient and reliable. Powerful magnets protect the main motor. The machine has the characteristics of high output, low energy consumption, reliable performance, convenient operation, and beautiful appearance. It is the key equipment in the feed processing and pelletizing section.

This machine mainly presses a variety of evenly mixed powdered feed into granular feed. Pellet feed can give full play to the effectiveness of various feed ingredients, improve the utilization rate of feed, and is widely used in small and medium-sized farms, feed processing industries and compound fertilizer granulation.

2. What’s the main structure of feed pellet machine?

(1) Machine structure

The main structure of this machine is composed of feeder, feed barrel, pelletizing chamber, frame and transmission system.

(2) Formation of the feeder mechanism

The feeder adapts to different types of materials to meet different residence time or productivity, but sufficient practical experience is required when adjusting.

The feeder adopts a variable-speed motor device, which mixes the fed materials and adds 10-20% of water to soften and fully mix, and then feed the materials uniformly into the pelletizing chamber.

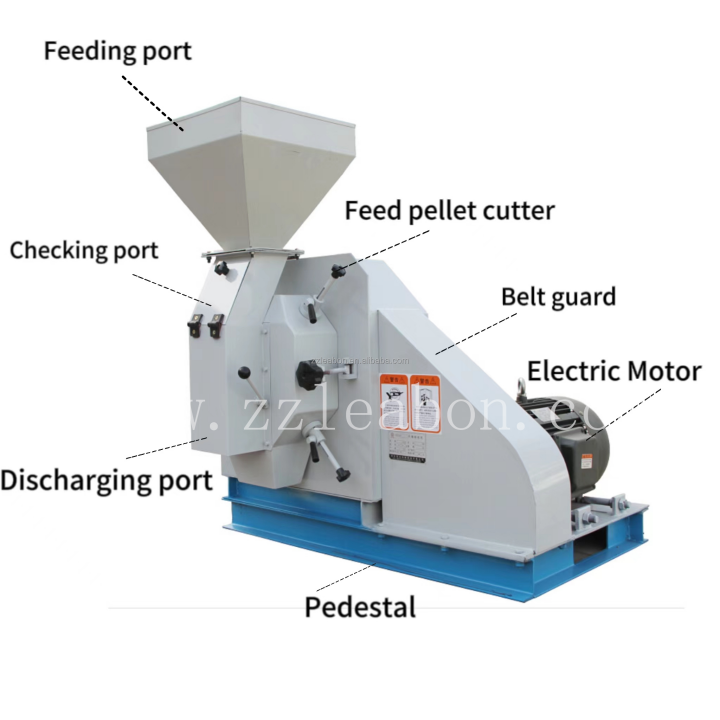

feed pellet machine1

3. How to maintenance and troubleshooting the feed pellet machine ?

1. Daily maintenance (after each shift)

(1) Check the electrical starting system circuit;

(2) Keep the pellet press clean, and clean up the feeder, agitator, feed barrel and pelletizing chamber;

(3) Check the gap and wear between the pressure die and the pressure roller, and replace the pressure roller in time when the wear of the pressure roller can no longer be adjusted to the required gap (two should be replaced at the same time);

(4) Abnormal cleaning phenomenon and malfunction;

(5) Check the adjustment of the cutter.
